Custom Stainless Steel 304 316 Weld Mini Ball Valve

Basic Information

Core Features of Stainless Steel Barb Fittings

Multi-tiered tapered barbs provide a tight, clamp-free seal on various soft hoses. Resists vibration and pressure changes to prevent disconnection.

Constructed from 304/316/316L stainless steel for superior durability in harsh environments including chemical and marine applications.

Full-bore design minimizes pressure loss and improves system efficiency with unobstructed fluid transfer.

Allows quick and easy hose attachment without tools, reducing assembly time and maintenance costs.

Supports multiple connection types (NPT, BSP, tri-clamp, etc.) and is suited for use in

water, air, food, chemical, and industrial systems.

Advantages

• Cost-Effective: Simplifies inventory with single-part solutions
• Extended Service Life: Stainless steel and high-grade seals ensure durability in harsh conditions
• Enhanced Safety: Features fire-resistant (ATEX-compliant) and leak-proof operation
• Eco-Friendly: Reusable and recyclable to support sustainability
• Efficient Flow: Reduces pressure drop by up to 98% for compact system design
• Quick Installation: Tool-free assembly cuts installation time by 70%
• Broad Compatibility: Suitable for both water-glycol and dielectric fluids

Technical Specifications

When selecting stainless steel barb fittings—also called hose barb connectors or pagoda-style fittings—it is essential to review the technical specifications to ensure compatibility with your fluid transfer system.

Applications of Stainless Steel Barb Fittings and Valves

• Industrial Hydraulics & Pneumatics- Provides reliable, vibration-resistant connections for manufacturing and pneumatic equipment.
• Thermal Management & Cooling Systems- Ensures efficient leak-free cooling in data centers, EV batteries, and energy storage units.
• Chemical & Petrochemical Processing- Resists corrosive fluids in harsh environments with long-lasting 316L stainless steel.
• Food & Beverage Production- Delivers hygienic, sanitary-compliant fluid transfer for food and beverage processing.
• Marine & Offshore Engineering- Withstands saltwater corrosion in marine and offshore applications for durable performance.

Stainless Steel Tower-Type Valves Overview

Stainless steel tower-type valves - also known as pagoda-style valves or barb-head valves - are specialized devices for secure and reliable fluid connections.

They combine a valve mechanism with a tapered barb fitting, making them suitable for flow regulation and quick hose attachment.

Applications of Tower-Type Valves

Thanks to their corrosion resistance and flexible configurations, stainless steel tower-type valves are widely applied in:

• Industrial hydraulics
• Chemical processing
• Food and beverage systems
• Other demanding fluid control applications

Selection Guide

When selecting stainless steel tower-type valves (also known as pagoda-style valves) or stainless steel barb-head valves, there are several key factors to keep in mind.

Whether you're using corrosion-resistant valves or barbed fittings, both offer durable engineering, strong chemical resistance, and user-friendly installation. These features make them essential components in fluid control systems across various sectors, particularly in industrial hydraulics and temperature-sensitive applications. Their adaptability and consistent performance support reliability in demanding environments.

Customization Options

For projects requiring unique branding or specifications, these stainless steel hose barb fittings can be customized to meet specific requirements.

Certifications & Quality Assurance

Manufactured under stringent ISO-certified systems (e.g., ISO 9001)
SGS-verified quality checks ensure material and performance reliability
Optionally produced under GRS-certified processes (Global Recycled Standard), supporting eco-friendly and sustainable production

Packaging & Shipping

Products are carefully protected with spark-proof film or kraft paper, then boxed or palletized. Reinforced corners and custom packaging help withstand long-distance sea or truck transport, ensuring safe arrival at customer destinations.

Packaging Details	Carton/Palette/Customized
Individual Packaging Size	Example: 8X10X15 cm (subject to change)
Single Item Gross Weight	Example: 0.50 KG (subject to change)
Delivery Time	7-30 days after payment
Shipping Method	Sea/Air/Courier

Why Choose Us

For custom-designed solutions, expert technical guidance, and reliable product offerings, turn to Jarzoo—your trusted partner alongside leading manufacturers in the field.

Get a Free Quotation Today

Share your drawings or samples with us, and our engineering team will offer technical consultation, 3D modeling, and a competitive quote within 24 hours.

FAQs

Q1: What sizes are available for these hose barb fittings?

We offer a wide range of custom fittings that are designed to be compatible with both SS 304 and SS 316 material options, ensuring that you have the flexibility to choose the right solution for your specific needs.

Q2: Can these fittings withstand corrosive environments?

Yes. Made from high-grade stainless steel, they resist corrosion, making them ideal for harsh chemical or outdoor exposure.

Q3: Are installation tools required?

Most fittings can be tightened by hand using the hex shape. For high-pressure systems, a wrench is recommended to ensure secure fittings.

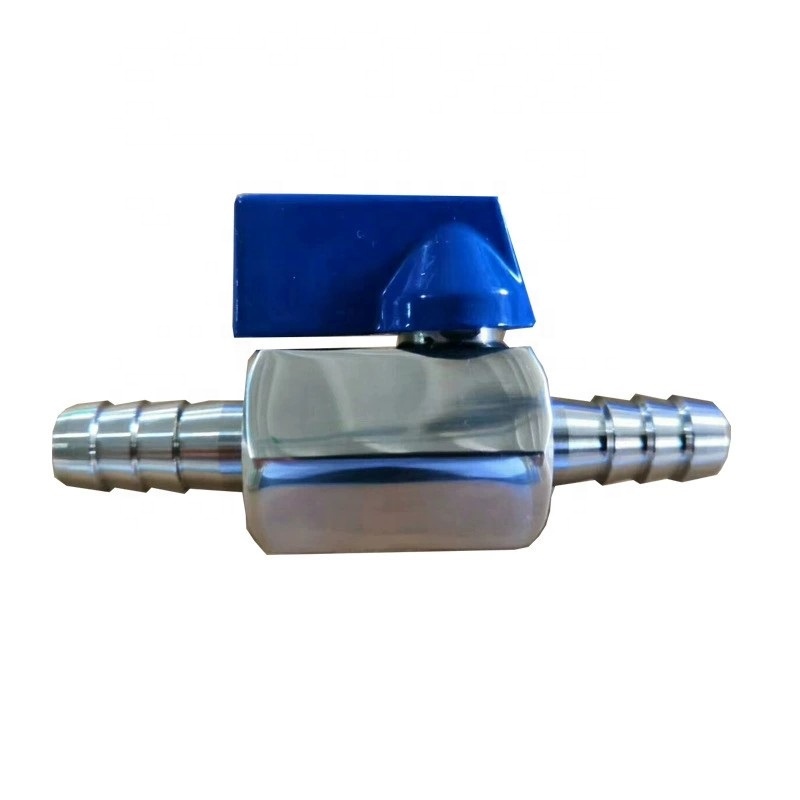

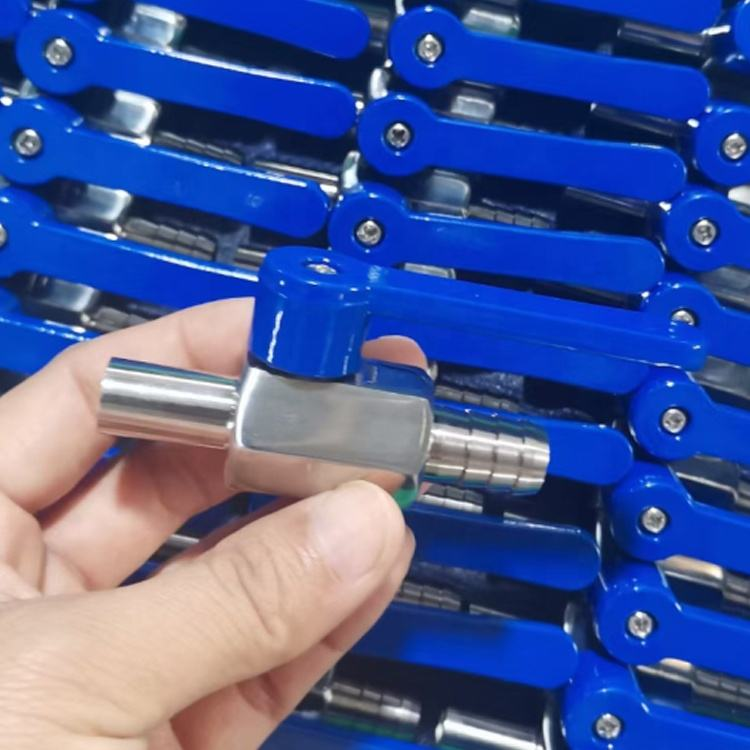

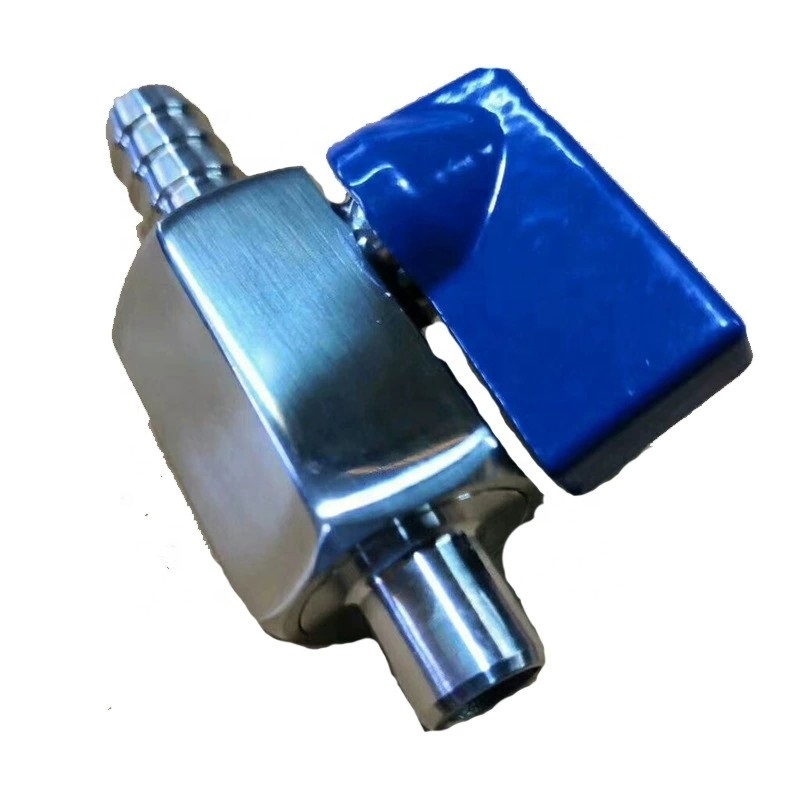

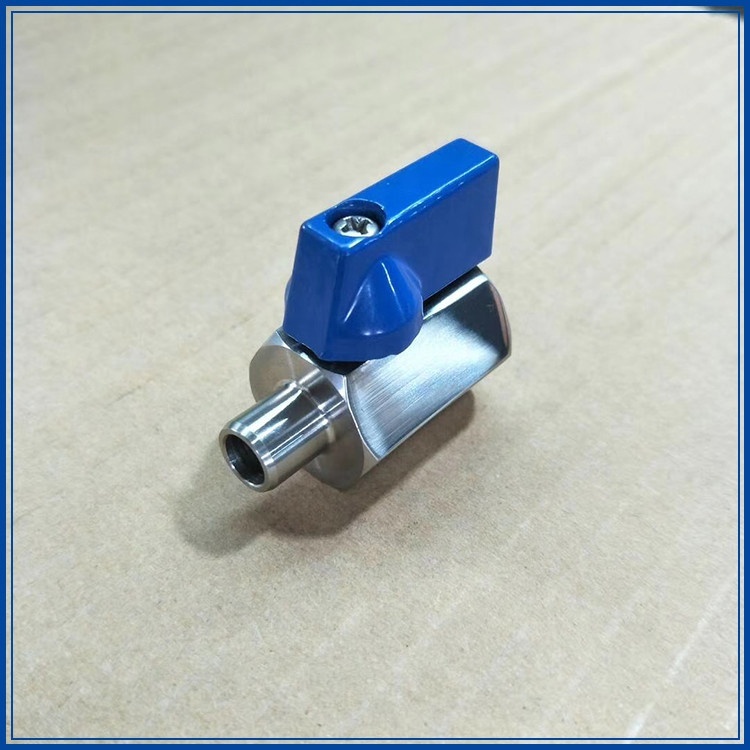

Stainless Steel Welded Mini Ball Valve: Compact Design for High-Performance Flow Control

1. Core Definition & Structural Features
A stainless steel welded mini ball valve is a compact, corrosion-resistant valve designed for precise flow control in space-constrained environments. Its key features include:
Welded Construction: The valve body is seamlessly welded (e.g., from 304/316L stainless steel tubes), eliminating external leakage risks and enhancing structural integrity under high pressure.
Miniature Size: Port sizes typically range from 6mm to 25mm (DN6-DN25), with a height under 120mm and weight as low as 0.8kg, making it ideal for tight installations.
Floating Ball Design: The ball rotates 90° to open/close flow, with PTFE/RPTFE seats ensuring bubble-tight sealing even in vacuum or high-pressure systems.
Bidirectional Flow: Suitable for both forward and reverse flow applications, reducing installation complexity.

2. Technical Specifications
Parameter    Details
Material    304/316L stainless steel (body), PTFE/RPTFE (seats), stainless steel/aluminum (handle)
Pressure Rating    PN16 (1.6 MPa) standard; high-pressure models up to PN63 (6.3 MPa)
Temperature Range    -25°C to 220°C (dependent on seal material)
Connection Types    Welded ends, optional threaded (NPT/BSP) or sanitary clamps
Actuation    Manual lever, pneumatic, or electric actuators for automation
Flow Path    Full bore (minimal pressure drop)
Certifications    ISO 9001, CE, ATEX (for explosive environments)

3. Key Advantages
Zero Leakage: Welded body and precision-machined ball/seat interface prevent external/internal leaks, critical for gas or toxic media.
Space Efficiency: 50% smaller than standard ball valves, fitting into instrument panels, analytical equipment, or miniature fluid systems.
Corrosion Resistance: 316L stainless steel withstands aggressive media (e.g., saltwater, acids), extending service life to 15+ years.
Low Maintenance: Modular design allows quick replacement of seats/seals without valve removal, reducing downtime.
High Flow Efficiency: Full-bore design minimizes pressure drop, optimizing system performance.

4. Typical Applications
Laboratory & Analytical Systems
Connects gas/liquid lines in HPLC, GC, or mass spectrometry equipment where precision and cleanliness are paramount.
Food & Beverage Processing
Controls ingredient flow in brewing, dairy, or soft drink production lines, compliant with hygienic standards (e.g., 3A, EHEDG).
Medical Devices
Regulates fluid in dialysis machines, dental units, or laboratory samplers, ensuring sterile, leak-proof operation.
Pneumatic & Hydraulic Control
Manages air/oil flow in compact machinery, robotics, or automation setups requiring rapid response.
Chemical Processing
Handles corrosive chemicals in small-scale reactors or dosing systems, resistant to acids and solvents.

5. Example Product Models
Swagelok SS-4WM-TB: 1/4" welded mini ball valve with 316L SS body, rated to 1000 PSI, suitable for high-purity gas lines.
Parker Hannifin A-Lok Mini-Welded Series: Compact design with BSPP threads for European compatibility, used in beverage dispensing systems.
HAM-LET H200-W: Sanitary-grade valve with tri-clamp ends and optional welded adapters for pharma applications, meeting ASME BPE standards.

6. Customization Options
End Connections: Alternate between welded ends, threaded fittings, or sanitary clamps for flexible integration.
Seal Materials: Upgrade to Viton for high-temperature steam or Kalrez for ultra-corrosive chemicals.
Actuation: Add pneumatic or electric actuators for remote control in hazardous environments.
Surface Finish: Electropolishing for ultra-smooth surfaces (Ra ≤ 0.2 μm) to meet cleanroom requirements.

Final Note:
The stainless steel welded mini ball valve is the optimal choice for applications demanding compact size, zero leakage, and long-term reliability in corrosive or high-purity environments. Its seamless welded construction and modular design simplify installation while ensuring decades of trouble-free operation.
