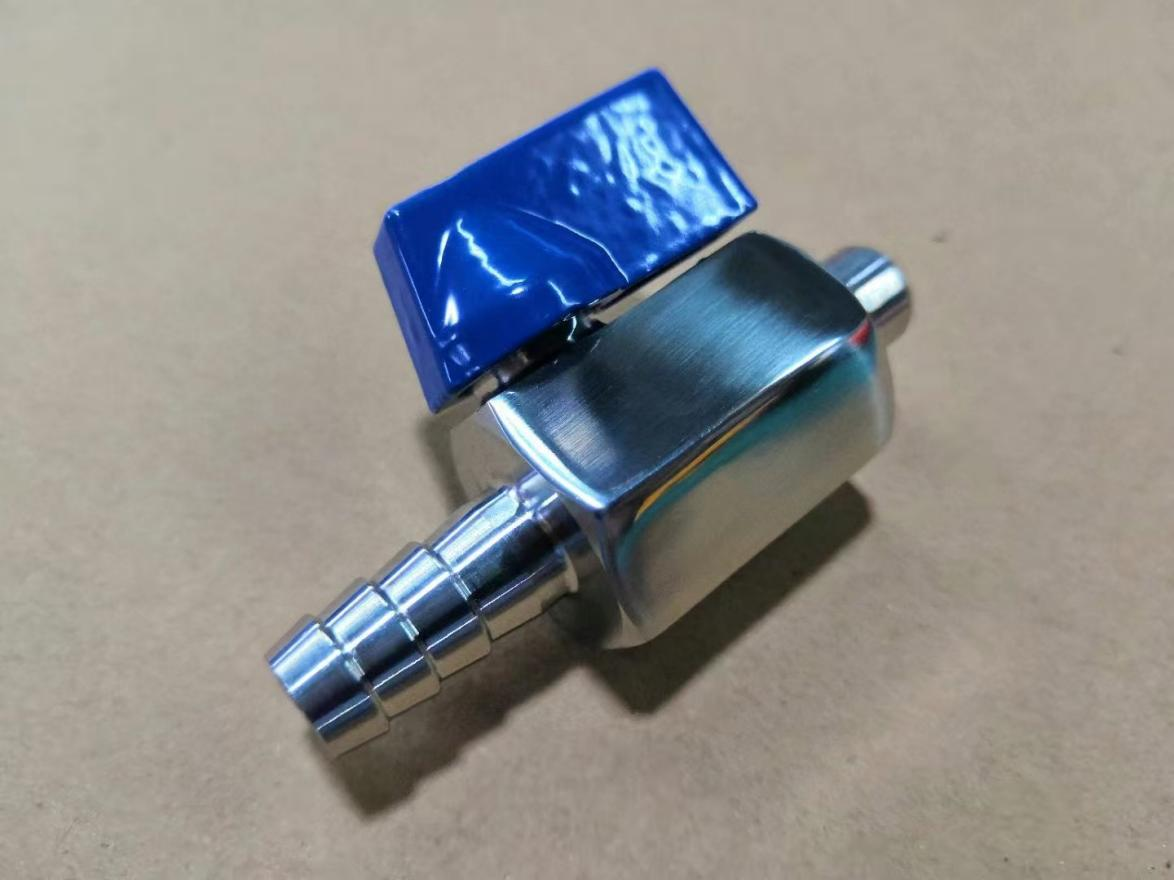

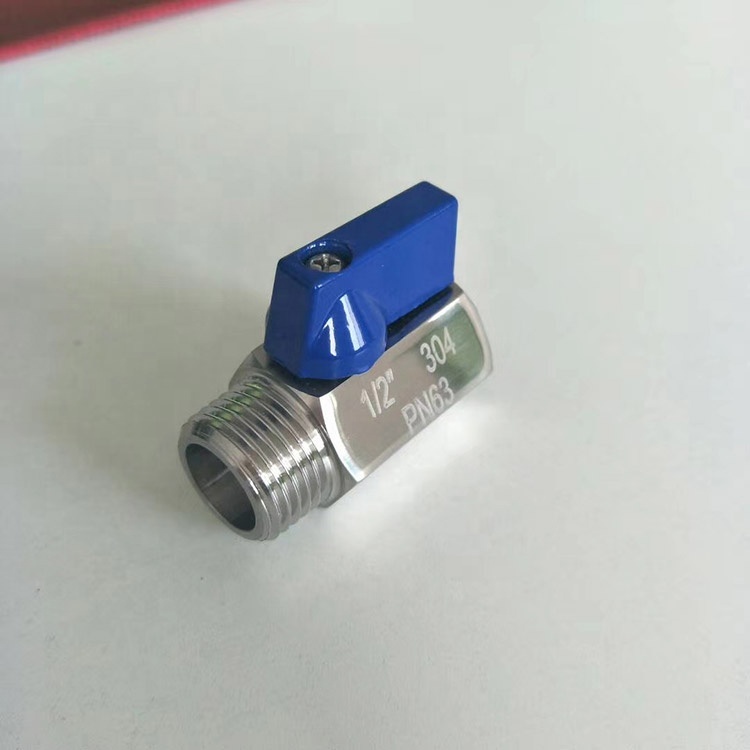

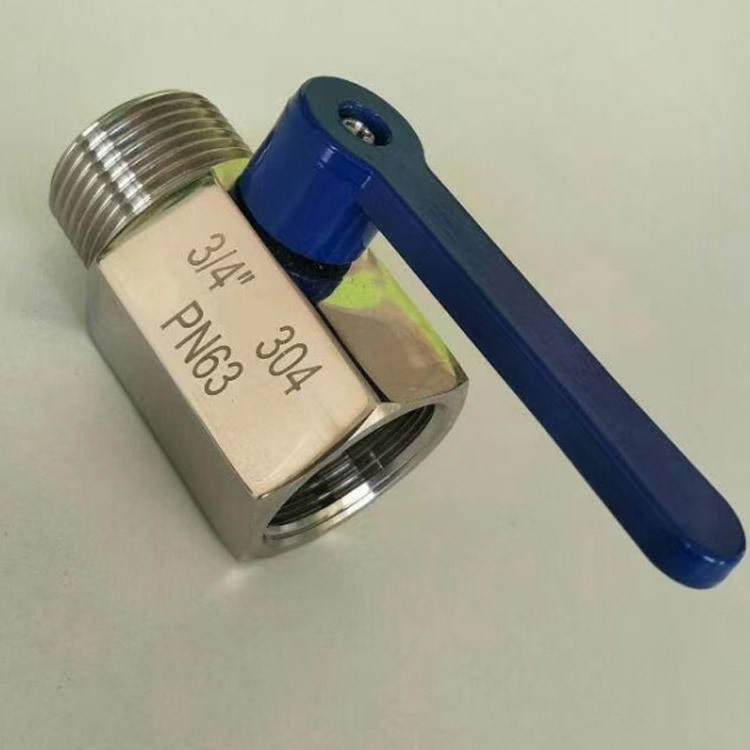

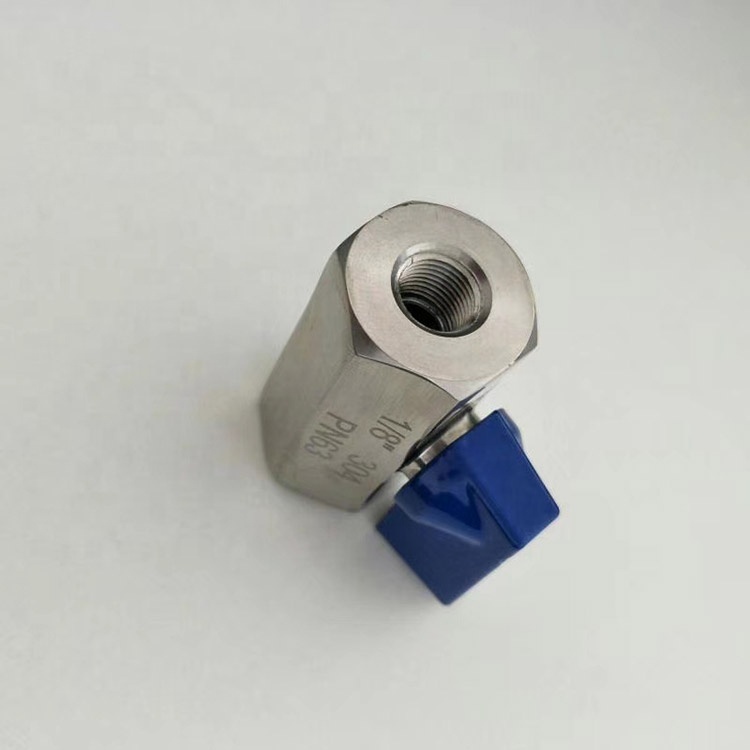

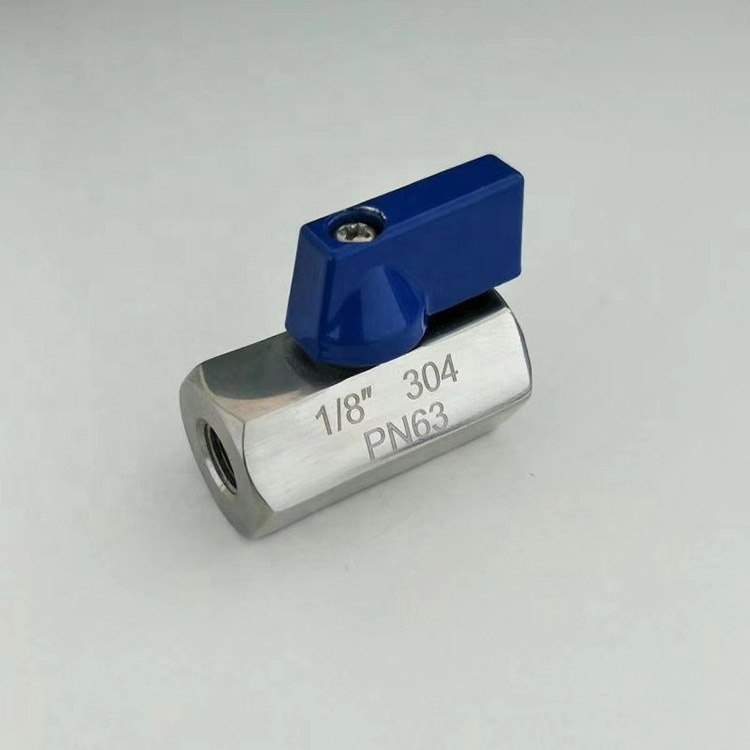

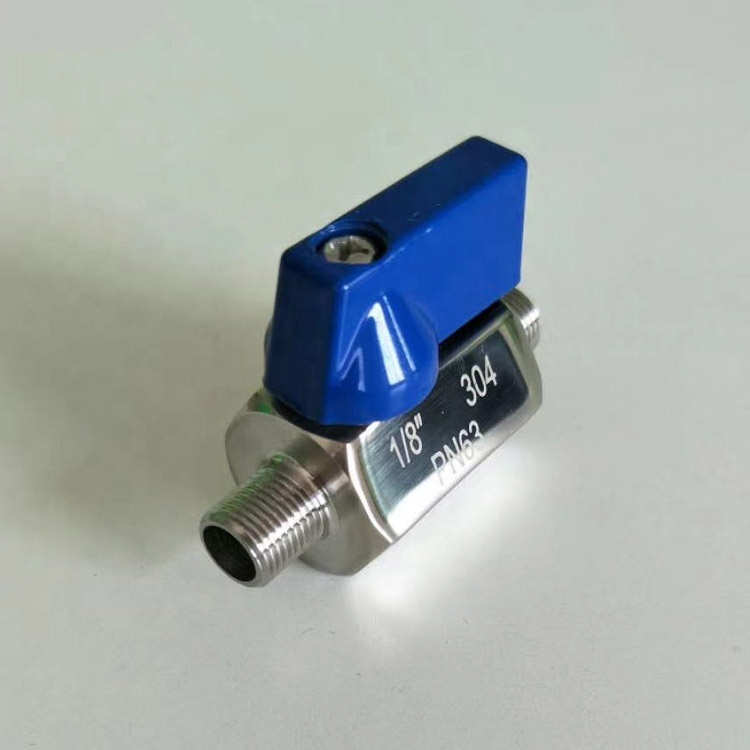

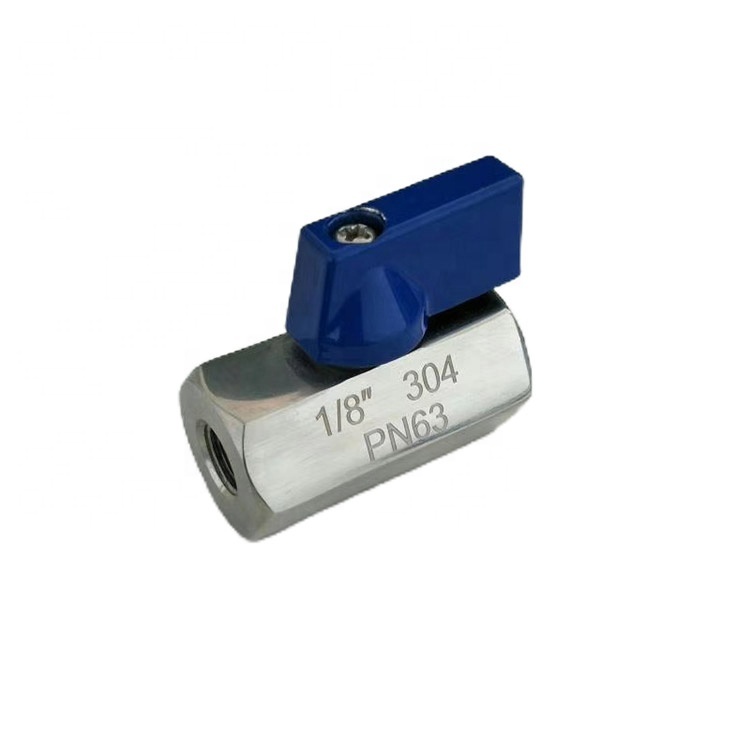

Name: Custom Stainless Steel 304 316 Sanitary Mini Ball Valve
Brand: jzcastings.com
SKU: 00097
Availability: InStock
Rating: 5 (1 reviews)

Description

Key Features of Stainless Steel Mini Ball Valves

Material Options:

· Food-grade 304 stainless steel or high-grade 316 stainless steel
· Excellent corrosion and oxidation resistance
· Complies with international casting material standards (CF8, CF8M, 1.4308, 1.4408)

Compact and Lightweight Design

Their miniaturized form factor saves space in tight installations, while their lightweight construction simplifies handling and integration into pipelines.

Precision Engineering:

·Investment casting (lost-wax/silica sol process)
·CNC machining with ±0.005mm tolerance
·Smooth internal surfaces for hygienic flow

Highly Durable & Leak-Proof:

·100% pressure & leakage tested
·Built to withstand medium temperatures and demanding use
·Mirror-polished surface for easy cleaning and aesthetics

OEM & Customization Support:

·Custom sizes, logo engraving, surface finish, packaging
·MOQ for customization starts from 100 pieces
·Full support from prototype to batch production

Benefits of Stainless Steel Mini Ball Valves

Compact & Space-Saving Design
Small footprint makes them ideal for tight installations (e.g., under sinks, in control panels, or on machinery).
Lightweight construction reduces strain on piping systems, making the stainless steel mini ball valve a great choice for compact setups.

High-Quality Stainless Steel Construction
Made from 304/316/316L stainless steel, offering excellent resistance to corrosion, rust, and chemical attack.
Suitable for water, air, steam, oil, and mild chemicals (e.g., dilute acids, alkalis).

End Connections
Threaded (NPT, BSPT, BSPP), socket weld (SW), or compression fittings or custom.

Hygienic Design & Corrosion Resistance

designed for sanitary applications (e.g., food, beverage, pharmaceuticals etc.)

Easy Operation

Manual lever handle for quick on/off control.
Some models support actuator mounting for automation (pneumatic/electric).

Leak-Proof Sealing

PTFE (Teflon) or RPTFE seats ensure tight shutoff even at low pressures.
Blowout-proof stem design prevents accidental disassembly under pressure.

Pressure & Temperature Ratings

Pressure: Up to PN63 (63 bar) / ANSI Class 800 (varies by model).
Temperature: -20°C to 180°C (depending on seal material).

Main Applications of Stainless Steel Mini Ball Valves

Residential & Commercial Plumbing
These miniature ball valves control hot and cold water flow in sinks, toilets, and heaters. The male-female connection ensures a secure, leak-free fit. They are also used in HVAC and refrigeration systems to manage refrigerant flow efficiently while saving space.

Pneumatic & Instrumentation Systems

Miniature ball valves regulate airflow in pneumatic tools, actuators, and automation lines. In gas sampling setups, they isolate instruments and resist corrosion, ensuring reliable and long-lasting performance.

Light Industrial Processes

In chemical dosing or food processing, these valves control additive flow accurately. They also work well in steam and condensate lines for heating or sterilization systems, offering stable operation under pressure and heat.

Automotive & Marine Applications

Stainless steel mini ball valves manage fuel, coolant, and hydraulic flow in vehicles. Made from 316L stainless steel, they resist saltwater corrosion and perform well in marine environments.

DIY & Hobbyist Projects

Ideal for aquariums, hydroponics, and home brewing, these small valves precisely control water or liquid flow. Their compact size and clean design make them perfect for small-scale projects.

Quality Assurance

Jarzoo ensures the highest quality standards:

100% visual & pressure testing before shipment

No burrs, perfect threads, and smooth mirror polished surfaces

In-house chemical analysis of molten material before casting

Traceability: All test samples retained for 2 years

Quality Assurance:strict material selection and quality inspection system to guarantee the superior quality

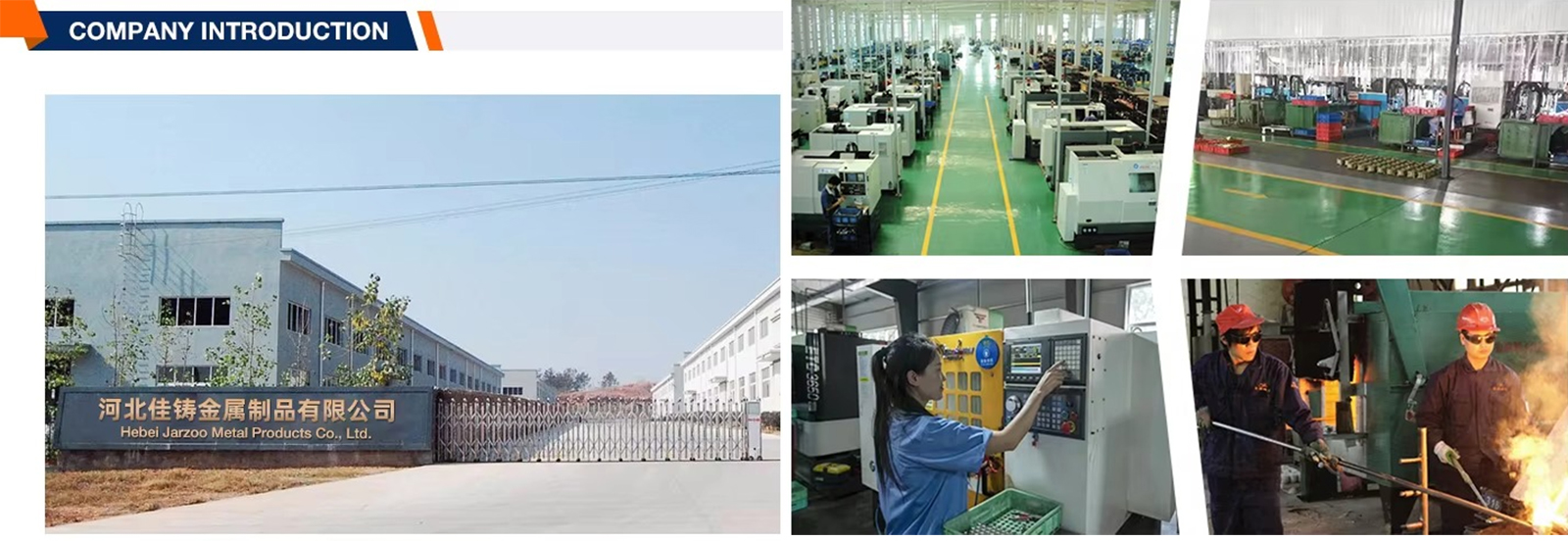

About Jarzoo

Hebei Jarzoo Metal Products Co., Ltd. specializes in custom precision castings using advanced investment casting (silica sol/lost wax). With decades of experience since the 1990s and a complete production line including mold design, casting, machining, and surface treatment, we serve industries ranging from brewing and food processing to automotive and aerospace.

We support full OEM/ODM capabilities, fast sampling, and reliable international logistics from our well-located base near Beijing and Tianjin ports.

Packaging & Delivery

Packaging: Secure carton or pallet packing

Delivery Time: Samples within 25 days; bulk order within 60 days

Shipping: Global delivery supported

Payment Terms:

Orders ≤ $1000: 100% advance

Orders ≥ $1000: 30% deposit, 70% before shipment

FAQ

Q: Do you offer samples?
A: Yes, sample is available with MOQ of 1 pc.

Q: Can I customize the logo or size?
A: Absolutely. We support custom logos, graphics, and non-standard sizes with a minimum order of 100 pieces.

Q: What materials can you provide?
A: We offer a wide range: SS304, SS316, WCB, alloy steel, carbon steel, copper alloys, and more.

Q: Can you trace materials and production batches?
A: Yes. All testing data and samples are archived for traceability.
