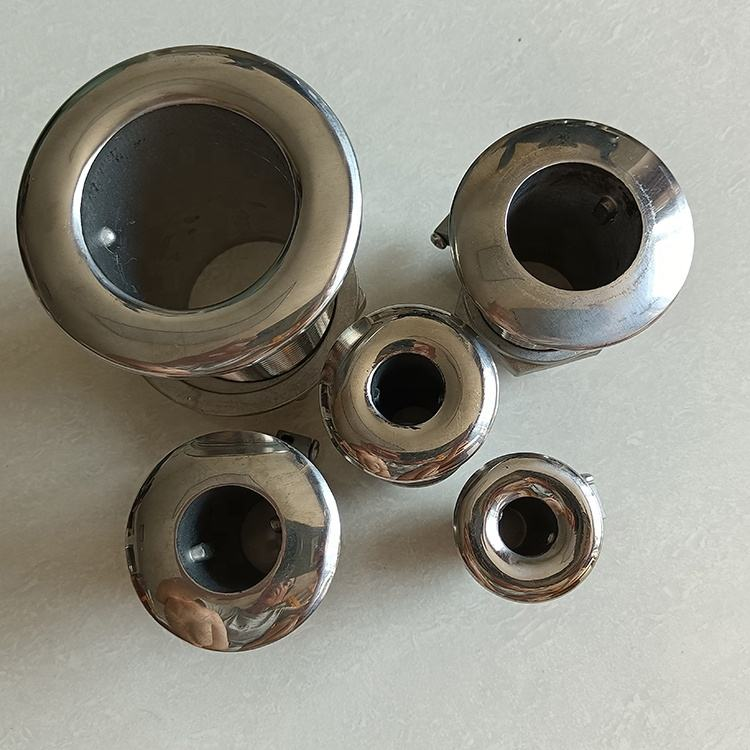

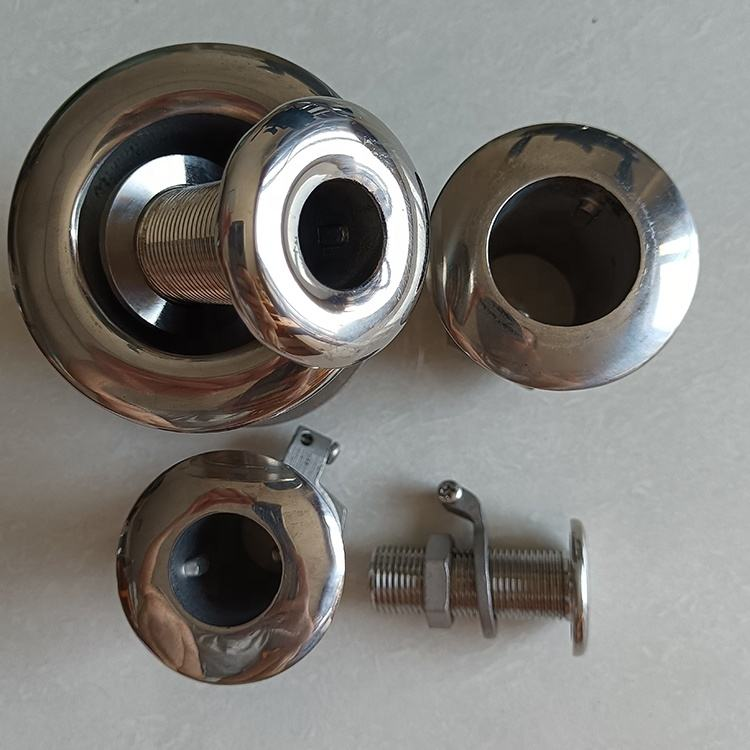

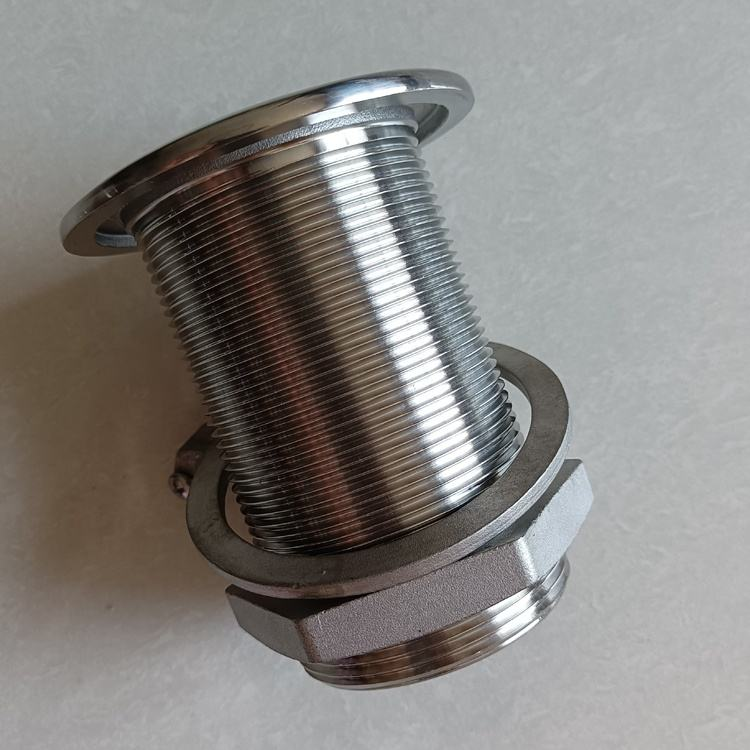

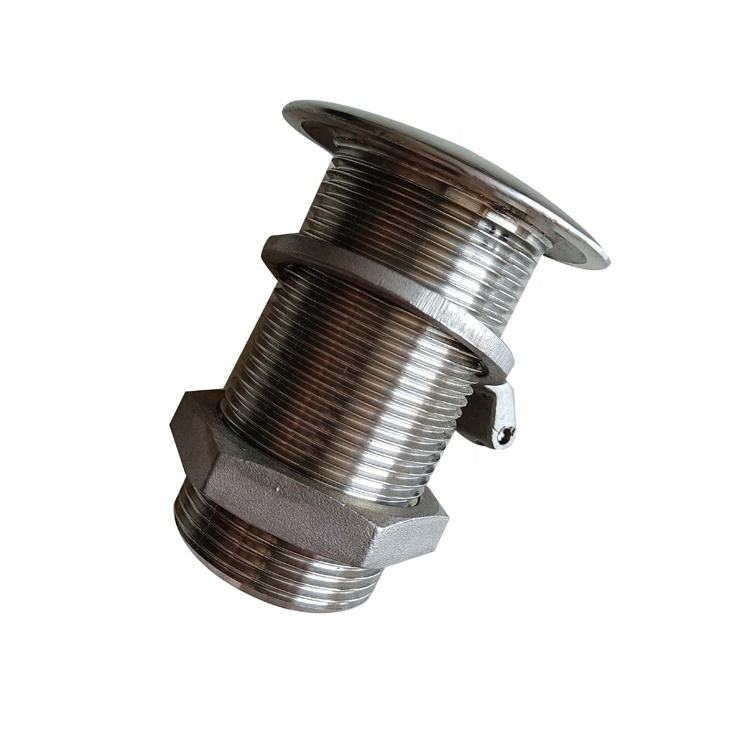

Yacht Outlet Fittings:
Key Features
- Material Excellence
- Marine-Grade Stainless Steel (316L/A4): Offers superior corrosion resistance against saltwater, UV exposure, and chemicals, ensuring long-term reliability.
- Bronze Alloys (e.g., DZR Bronze): Preferred for high-pressure applications due to their strength and resistance to dezincification in seawater.
- Composite Materials (e.g., Fiberglass-Reinforced Nylon): Lightweight and non-conductive, suitable for non-critical drainage systems.
- Design & Functionality
- Precision Engineering: CNC-machined or precision-cast for tight tolerances, ensuring leak-proof connections with hoses, pipes, or hulls.
- Aerodynamic/Hydrodynamic Profiles: Minimize drag and water ingress while maintaining smooth fluid flow.
- Modular Components: Include threaded adapters, flanges, and quick-connect fittings for easy installation and maintenance.
- Corrosion Protection
- Electropolished Surfaces: Enhance corrosion resistance and reduce biofouling (e.g., barnacle growth).
- Passivation Treatments: Create a protective oxide layer on stainless steel to prevent rust in chlorinated or brackish water.
- Sealing & Leak Prevention
- O-Ring Grooves: Integrated with silicone or EPDM gaskets for airtight/watertight seals.
- Threaded Connections: Compatible with NPT, BSP, or metric standards for secure hose attachments.
Types of Yacht Outlet Fittings
- Drainage Outlets
- Scuppers & Overboard Discharges: Channel rainwater or bilge water away from the deck.
- Transom Drains: Located at the stern for efficient water evacuation during heeling or washing.
- Engine & Cooling System Fittings
- Raw Water Intakes/Outlets: Connect to engine cooling loops, often featuring strainers to block debris.
- Exhaust Outlets: Vent engine gases safely overboard with integrated spark arrestors.
- Ventilation & Airflow
- Cowl Vents: Direct airflow into cabins while preventing water ingress.
- Dorade Boxes: Protect ventilation systems from waves with built-in water traps.
- Fuel & Water System Components
- Tank Breathers: Allow air exchange while preventing fuel spillage.
- Deck Fill Fittings: Secure ports for refueling or freshwater tank access.
Manufacturing Process
- Material Selection: High-purity marine-grade alloys or composites are chosen based on application requirements.
- Precision Machining/Casting:
- CNC Turning/Milling: For complex geometries with tight tolerances.
- Investment Casting: Produces intricate shapes (e.g., scupper drains) with minimal post-machining.
- Surface Treatment: Electropolishing, passivation, or anodizing enhances corrosion resistance and aesthetics.
- Quality Control:
- Pressure Testing: Verifies leak-proof performance under simulated operating conditions.
- Salt Spray Testing: Ensures long-term durability in saline environments.
Applications
- Luxury Yachts: High-end drainage and ventilation systems for deck and cabin comfort.
- Sailing Boats: Lightweight composite fittings to reduce hull weight and improve performance.
- Commercial Vessels: Heavy-duty bronze fittings for engine cooling and exhaust systems.
- Custom Builds: Tailored designs to match unique hull shapes or retrofit requirements.
Advantages
- Durability: Withstands extreme weather, UV rays, and constant saltwater exposure.
- Low Maintenance: Corrosion-resistant materials reduce the need for frequent replacements.
- Aesthetic Integration: Polished finishes or custom colors match yacht interiors/exteriors.
Industry Standards
- ISO 12215: Small craft—Hull construction and scantlings (includes outlet fitting requirements).
- ABYC H-27: Standards for onboard ventilation systems.
- CE Certification (EN 14960): For European-market compliance.
Conclusion
Yacht outlet fittings are critical components that ensure efficient water management, engine cooling, and ventilation on marine vessels. By combining advanced materials, precision engineering, and rigorous testing, these fittings deliver reliability, safety, and aesthetic appeal for both recreational and commercial boating applications.
For inquiries about custom designs or bulk orders, contact [Your Company Name]—a leading supplier of marine-grade outlet fittings.
Silica Sol Precision Casting Process
STEP 01
Wax Pattern Creation
Wax patterns are produced according to the customer’s CAD drawings or samples. This step determines the final dimensions, shape, and surface quality.
STEP 02
Shell Building with Silica Sol Slurry
The wax pattern is repeatedly dipped in a high-purity silica sol slurry and coated with refractory zircon sand, forming a strong ceramic shell.
STEP 03
Drying
Each layer is dried in a constant temperature and humidity environment to avoid cracks and ensure shell integrity.
STEP 04
Dewaxing & Shell Sintering
Wax is removed, and the ceramic shell is sintered at high temperature to achieve strength and dimensional stability.
STEP 05
Metal Pouring
Molten stainless steel 304, 316, carbon steel, alloy steel, or non-ferrous alloys are poured into the shell.
STEP 06
Shell Removal & Cleaning
The shell is broken away, and the raw casting is cleaned of any residual material.
STEP 07
Heat Treatment & Finishing
Heat treatments such as annealing, hardening, tempering, or surface hardening are applied to improve mechanical properties. Surface treatments like electropolishing or mirror polishing are available upon request.
Advantages of Silica Sol Investment Casting
· High Dimensional Accuracy – Tolerance grade CT4–CT6, ISO 8062 standards.
· Excellent Surface Finish – Ra 1.6–3.2 μm as-cast, Ra 0.8–3.2 μm after machining.
· Complex Shape Capability – Thin walls (0.5–0.8 mm) and intricate geometries.
· Material Versatility – Stainless steel, carbon steel, alloy steel, aluminum alloys, copper alloys.
· Reduced Machining – Near-net-shape production reduces post-processing time and cost.
· OEM & ODM Service – Fully customized according to drawings or samples.
Technical Specifications
|
Parameter
|
Specification
|
|
Materials
|
SS304 (CF8 / 1.4308), 304L (CF3), 316 (CF8M / 1.4408), 316L (CF3M / 1.4404 / 1.4409), WCB (1.0619), Carbon Steel #25/#35/#45, Alloy Steel, Aluminum Alloy, Copper Alloy
|
|
Casting Process
|
Silica Sol Precision Casting / Investment Casting / Lost-Wax Casting
|
|
Machining
|
CNC Machining Centers, CNC Lathes
|
|
Casting Tolerance
|
ISO 2768-mK, VDG P690 D1-D2, ISO 8062-3-2007 DCTG4-6, GCTG4-6
|
|
Casting Roughness
|
Ra 1.6–3.2 μm
|
|
Machining Tolerance
|
±0.005 mm, ISO 2768-f
|
|
Machining Roughness
|
Ra 0.8–3.2 μm
|
|
Weight Range
|
0.01–150 kg
|
|
Min. Wall Thickness
|
0.5–0.8 mm
|
|
Furnace Capacity
|
200 T
|
|
Finishing
|
Acid Passivation, Electropolishing, Mirror Polishing, Custom Surface Treatments
|
|
Heat Treatment
|
Annealing, Normalizing, Hardening, Tempering, Surface Hardening
|
Applications
Our silica sol precision castings are widely used in:
· Aerospace components
· Automotive parts & valve bodies
· Marine and shipbuilding hardware
· Medical instruments & surgical tools
· Industrial machinery & pump housings
· Agricultural machinery parts
· Architectural fittings & decorative hardware
· Pipe fittings & flanges
· OEM/ODM custom projects
Quality Assurance
Create leading brand of China foreign trade internet marketing outsourcing service
Get a Free Quotation Today
Send us your drawings or samples, and our engineering team will provide technical consultation, 3D modeling, and a competitive quotation within 24 hours.
Why Choose Us
32+ years
professional
industry production experience and
experienced R&D team and
international trade service team.
Attentive pre-sales
And after-sales service. timely
resolution of the customers'
problems.
Quality Assurance
Strict material
selection and quality inspection system.
strict QC system to guarantee the
superior quality. The best products
at the most reasonable price.
OEM&ODM Customisable
According to the customers' drawings
or products.we have experienced
techinicians to help you design
what you want.
Quality Assurance
02Jarzoo ensures the highest quality standards:
100% visual & pressure testing before shipment
01
No burrs, perfect threads, and smooth surfaces
02
In-house chemical analysis of molten material before casting
03
Traceability: All test samples retained for 2 years
04
Quality Assurance:strict material selection and quality inspection system to guarantee the superior quality
0
About Jarzoo
Hebei Jarzoo Metal Products Co., Ltd. specializes in custom precision castings using advanced investment casting (silica sol/lost wax). With decades of experience since the 1990s and a complete production line including mold design, casting, machining, and surface treatment, we serve industries ranging from brewing and food processing to automotive and aerospace.
We support full OEM/ODM capabilities, fast sampling, and reliable international logistics from our well-located base near Beijing and Tianjin ports.
Packaging & Delivery
Packaging: Secure carton or pallet packing
Delivery Time: Samples within 25 days; bulk order within 60 days
Shipping: Global delivery supported
Payment Terms:
Orders ≤ $1000: 100% advance
Orders ≥ $1000: 30% deposit, 70% before shipment
FAQ
Q: Do you offer samples?
A: Yes, sample is available with MOQ of 1 pc.
Q: Can I customize the logo or size?
A: Absolutely. We support custom logos, graphics, and non-standard sizes with a minimum order of 100 pieces.
Q: What materials can you provide?
A: We offer a wide range: SS304, SS316, WCB, alloy steel, carbon steel, copper alloys, and more.
Q: Can you trace materials and production batches?
A: Yes. All testing data and samples are archived for traceability.
