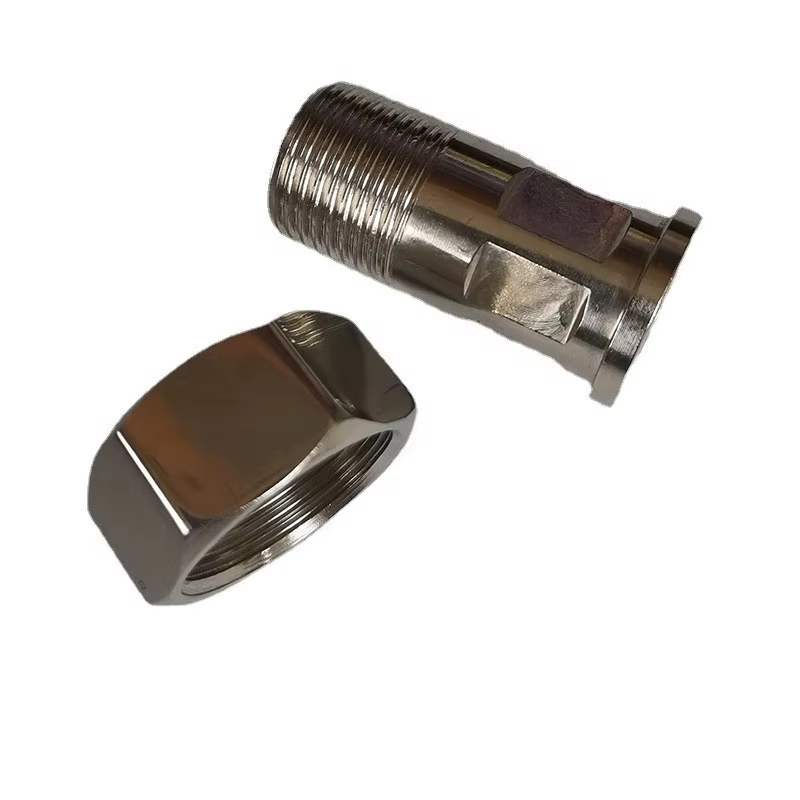

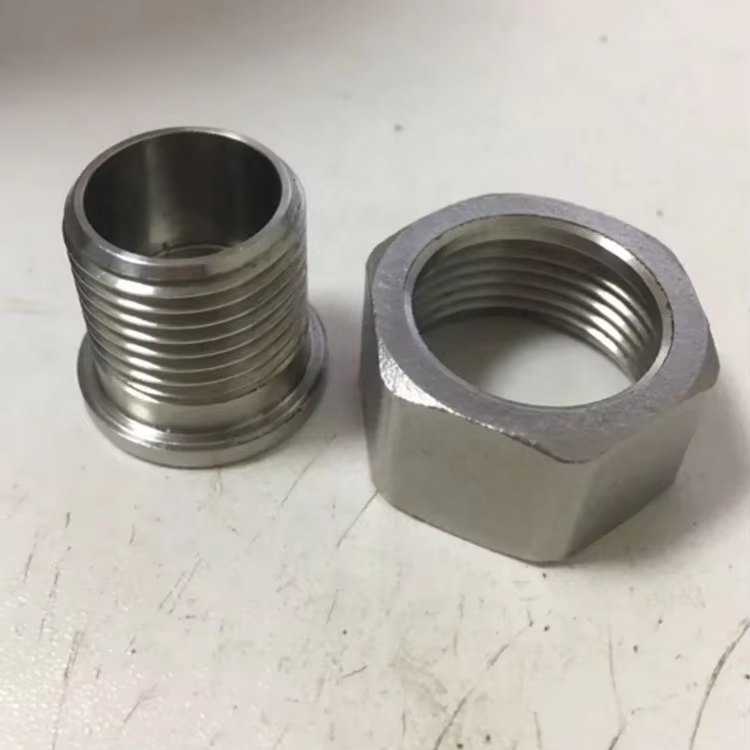

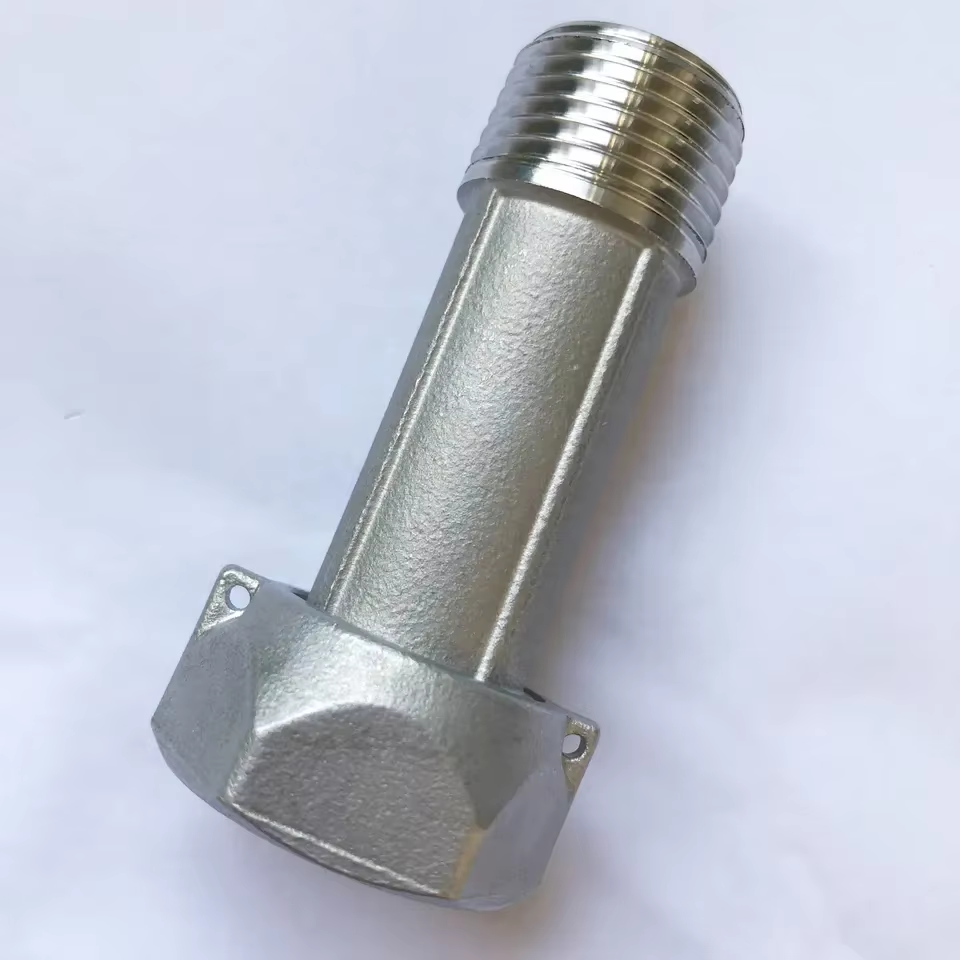

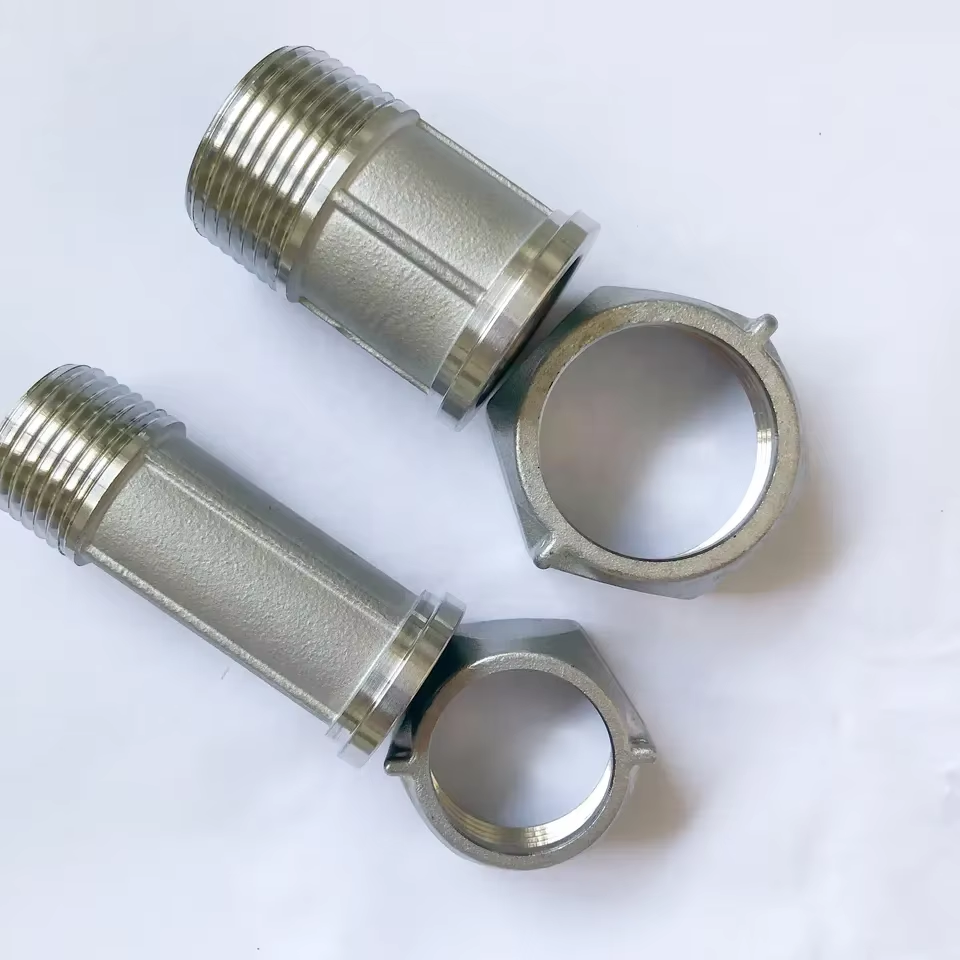

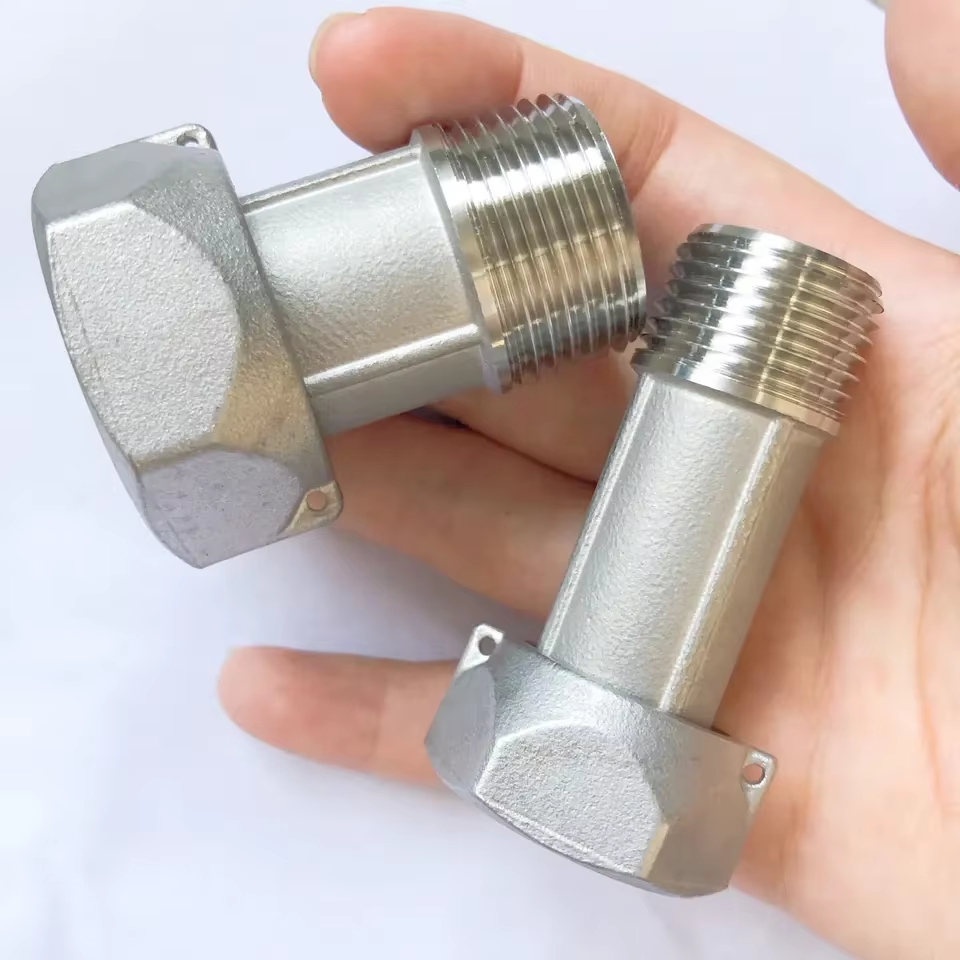

Stainless Steel Casting Water Meter Connector: A Durable and Reliable Plumbing Solution
Key Features & Benefits
Premium Stainless Steel Construction
Made from 304 or 316 stainless steel, the connector offers superior resistance to rust, oxidation, and chemical corrosion, ensuring durability in both potable water and aggressive environments.
The casting process ensures a seamless, one-piece design without weak joints, enhancing structural integrity under high pressure.
Precision Threaded Connections
Equipped with standardized threads (e.g., NPT, BSP, ISO 228) for compatibility with most water meters and pipes.
Available in various sizes to accommodate different meter diameters and plumbing configurations.
Leak-Proof Sealing
Integrated EPDM or silicone gaskets provide a tight seal, preventing water leakage even under varying pressure conditions.
Some models feature compression fittings or flange connections for added reliability in critical applications.
High-Pressure & Temperature Tolerance
Suitable for systems operating at high pressures (up to 16 bar/232 psi) and temperatures ranging from -20°C to 120°C (-4°F to 248°F).
Easy Installation & Maintenance
Lightweight yet robust, the connector simplifies installation with hand-tightening or wrench adjustment.
Smooth surface finish minimizes sediment buildup, facilitating quick cleaning and inspection.
Applications
Residential Water Metering: Connects household water meters to municipal supply lines.
Commercial Buildings: Used in hotels, offices, and schools for accurate water consumption tracking.
Industrial Systems: Integrates into manufacturing plants, irrigation networks, and wastewater treatment facilities.
Municipal Infrastructure: Supports large-scale water distribution projects with reliable connections.
Technical Specifications
Material: 304/316 Stainless Steel (casting grade)
Thread Type: NPT, BSPT, or customer-specified
Pressure Rating: PN16 (16 bar)
Temperature Range: -20°C to 120°C
Surface Finish: Polished or brushed to prevent scaling
Why Choose Stainless Steel Cast Connectors?
Longevity: Outlasts brass or plastic alternatives in harsh conditions.
Hygiene: Stainless steel is non-toxic and meets drinking water safety standards (e.g., NSF/ANSI 61).
Cost-Efficiency: Low maintenance and replacement costs over its lifespan.
Example Usage
"The stainless steel cast water meter connector features a 1" NPT male thread and a built-in EPDM seal, ensuring a secure, leak-free connection to the water meter in a high-rise apartment complex."
This product is a trusted choice for engineers and plumbers seeking a high-performance, corrosion-resistant, and easy-to-install solution for water metering systems.
Silica Sol Precision Casting Process
STEP 01
Wax Pattern Creation
Wax patterns are produced according to the customer’s CAD drawings or samples. This step determines the final dimensions, shape, and surface quality.
STEP 02
Shell Building with Silica Sol Slurry
The wax pattern is repeatedly dipped in a high-purity silica sol slurry and coated with refractory zircon sand, forming a strong ceramic shell.
STEP 03
Drying
Each layer is dried in a constant temperature and humidity environment to avoid cracks and ensure shell integrity.
STEP 04
Dewaxing & Shell Sintering
Wax is removed, and the ceramic shell is sintered at high temperature to achieve strength and dimensional stability.
STEP 05
Metal Pouring
Molten stainless steel 304, 316, carbon steel, alloy steel, or non-ferrous alloys are poured into the shell.
STEP 06
Shell Removal & Cleaning
The shell is broken away, and the raw casting is cleaned of any residual material.
STEP 07
Heat Treatment & Finishing
Heat treatments such as annealing, hardening, tempering, or surface hardening are applied to improve mechanical properties. Surface treatments like electropolishing or mirror polishing are available upon request.
Advantages of Silica Sol Investment Casting
· High Dimensional Accuracy – Tolerance grade CT4–CT6, ISO 8062 standards.
· Excellent Surface Finish – Ra 1.6–3.2 μm as-cast, Ra 0.8–3.2 μm after machining.
· Complex Shape Capability – Thin walls (0.5–0.8 mm) and intricate geometries.
· Material Versatility – Stainless steel, carbon steel, alloy steel, aluminum alloys, copper alloys.
· Reduced Machining – Near-net-shape production reduces post-processing time and cost.
· OEM & ODM Service – Fully customized according to drawings or samples.
Technical Specifications
|
Parameter
|
Specification
|
|
Materials
|
SS304 (CF8 / 1.4308), 304L (CF3), 316 (CF8M / 1.4408), 316L (CF3M / 1.4404 / 1.4409), WCB (1.0619), Carbon Steel #25/#35/#45, Alloy Steel, Aluminum Alloy, Copper Alloy
|
|
Casting Process
|
Silica Sol Precision Casting / Investment Casting / Lost-Wax Casting
|
|
Machining
|
CNC Machining Centers, CNC Lathes
|
|
Casting Tolerance
|
ISO 2768-mK, VDG P690 D1-D2, ISO 8062-3-2007 DCTG4-6, GCTG4-6
|
|
Casting Roughness
|
Ra 1.6–3.2 μm
|
|
Machining Tolerance
|
±0.005 mm, ISO 2768-f
|
|
Machining Roughness
|
Ra 0.8–3.2 μm
|
|
Weight Range
|
0.01–150 kg
|
|
Min. Wall Thickness
|
0.5–0.8 mm
|
|
Furnace Capacity
|
200 T
|
|
Finishing
|
Acid Passivation, Electropolishing, Mirror Polishing, Custom Surface Treatments
|
|
Heat Treatment
|
Annealing, Normalizing, Hardening, Tempering, Surface Hardening
|
Applications
Our silica sol precision castings are widely used in:
· Aerospace components
· Automotive parts & valve bodies
· Marine and shipbuilding hardware
· Medical instruments & surgical tools
· Industrial machinery & pump housings
· Agricultural machinery parts
· Architectural fittings & decorative hardware
· Pipe fittings & flanges
· OEM/ODM custom projects
Quality Assurance
Create leading brand of China foreign trade internet marketing outsourcing service
Get a Free Quotation TodaySend us your drawings or samples, and our engineering team will provide technical consultation, 3D modeling, and a competitive quotation within 24 hours.
Why Choose Us
32+ years
professional
industry production experience and
experienced R&D team and
international trade service team.
Attentive pre-sales
And after-sales service. timely
resolution of the customers'
problems.
Quality Assurance
Strict material
selection and quality inspection system.
strict QC system to guarantee the
superior quality. The best products
at the most reasonable price.
OEM&ODM Customisable
According to the customers' drawings
or products.we have experienced
techinicians to help you design
what you want.
Quality Assurance
02Jarzoo ensures the highest quality standards:
100% visual & pressure testing before shipment
01
No burrs, perfect threads, and smooth surfaces
02
In-house chemical analysis of molten material before casting
03
Traceability: All test samples retained for 2 years
04
Quality Assurance:strict material selection and quality inspection system to guarantee the superior quality
0
About Jarzoo
Hebei Jarzoo Metal Products Co., Ltd. specializes in custom precision castings using advanced investment casting (silica sol/lost wax). With decades of experience since the 1990s and a complete production line including mold design, casting, machining, and surface treatment, we serve industries ranging from brewing and food processing to automotive and aerospace.
We support full OEM/ODM capabilities, fast sampling, and reliable international logistics from our well-located base near Beijing and Tianjin ports.
Packaging & Delivery
Packaging: Secure carton or pallet packing
Delivery Time: Samples within 25 days; bulk order within 60 days
Shipping: Global delivery supported
Payment Terms:
Orders ≤ $1000: 100% advance
Orders ≥ $1000: 30% deposit, 70% before shipment
FAQ
Q: Do you offer samples?
A: Yes, sample is available with MOQ of 1 pc.
Q: Can I customize the logo or size?
A: Absolutely. We support custom logos, graphics, and non-standard sizes with a minimum order of 100 pieces.
Q: What materials can you provide?
A: We offer a wide range: SS304, SS316, WCB, alloy steel, carbon steel, copper alloys, and more.
Q: Can you trace materials and production batches?
A: Yes. All testing data and samples are archived for traceability.
