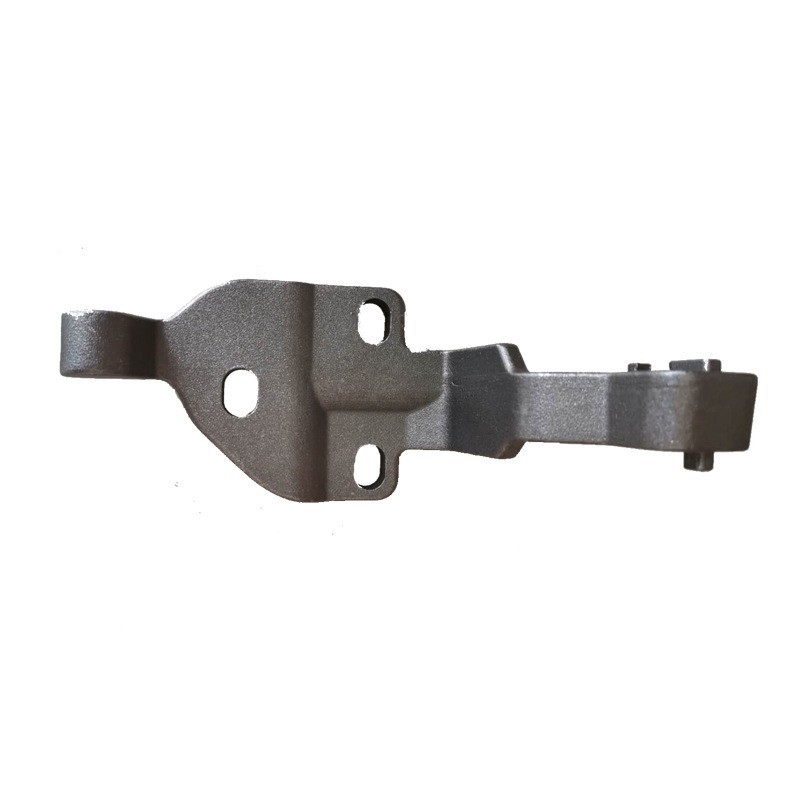

Investment Casting (Silica Sol Precision Casting) Carbon Steel Rearview Mirror Frame

Carbon Steel Rearview Mirror Frame:

1. Definition & Purpose

A carbon steel rearview mirror frame is a structural component designed to securely mount and support automotive rearview mirrors, ensuring optimal visibility for drivers. Constructed from high-strength carbon steel, these frames combine durability, cost-efficiency, and ease of manufacturing, making them a popular choice in both OEM (Original Equipment Manufacturer) and aftermarket automotive applications.

2. Key Features & Advantages

A. Material Properties

• High Tensile Strength: Carbon steel (typically medium-carbon grades like SAE 1045 or AISI 1020) offers excellent resistance to deformation under stress, ensuring the mirror remains stable during vibrations or impacts.
• Malleability & Weldability: Easily shaped into complex geometries (e.g., curved brackets, adjustable arms) via stamping, bending, or welding processes.
• Cost-Effectiveness: Lower material and production costs compared to stainless steel or aluminum alloys, without compromising structural integrity.

B. Functional Design

• Adjustable Mechanisms: Many frames incorporate ball-and-socket joints or ratchet systems, allowing drivers to tilt the mirror for optimal rear visibility.
• Lightweight Construction: Despite its strength, carbon steel is relatively lightweight, minimizing additional load on the vehicle’s mirror assembly.
• Corrosion Resistance (Enhanced):
  • Electroplated Coatings: Zinc or nickel plating protects against rust in humid or saline environments.
  • Powder Coating: Provides a durable, scratch-resistant finish in matte or glossy colors (e.g., black, chrome) for aesthetic appeal.

C. Compatibility & Versatility

• Universal Fit: Designed to accommodate various mirror shapes (e.g., rectangular, oval) and mounting standards (e.g., European, Japanese, or American vehicle specifications).
• Aftermarket Customization: Available in ergonomic designs with ergonomic grips or integrated turn-signal indicators for enhanced functionality.

3. Manufacturing Process

1. Material Selection: Medium-carbon steel sheets or rods are chosen based on required thickness (typically 1.5–3 mm) and tensile strength (400–600 MPa).
2. Cutting & Stamping: Laser or waterjet cutting machines shape the frame components, followed by stamping to create holes for screws or adjustment knobs.
3. Forming & Welding:
   • Hydraulic presses bend the steel into the desired curvature (e.g., for truck side mirrors).
   • Spot welding or MIG welding joins multiple parts (e.g., mirror arm, base bracket) securely.
4. Surface Treatment:
   • Degreasing & Pickling: Removes oil and oxide layers to prepare for coating.
   • Electroplating/Powder Coating: Applies a protective layer to resist corrosion and improve aesthetics.
5. Quality Control:
   • Tensile testing ensures the frame meets strength specifications.
   • Salt spray tests verify corrosion resistance (e.g., 500+ hours for premium grades).

4. Applications

• Passenger Vehicles: Used in cars, SUVs, and vans for side mirrors or interior rearview mirror supports.
• Commercial Trucks & Buses: Heavy-duty frames withstand vibrations from long-haul transportation.
• Motorcycles & ATVs: Lightweight, adjustable frames enhance rider safety in off-road conditions.
• Aftermarket Upgrades: Replacement frames for damaged or outdated OEM components, often featuring improved adjustability or styling.

5. Industry Standards & Compliance

• SAE J984: Specifies performance requirements for automotive mirror mounting systems, including vibration resistance and impact durability.
• FMVSS 111: U.S. Federal Motor Vehicle Safety Standard ensuring rearview mirrors provide adequate field of view.
• ISO 9001: Certifies quality management systems in manufacturing processes.

6. Limitations

• Corrosion Susceptibility: Without proper coatings, carbon steel may rust in coastal or snowy regions where road salt is used.
• Weight (Relative): Slightly heavier than aluminum alternatives, though advancements in lightweight steel alloys mitigate this issue.

7. Innovations & Trends

• High-Strength Low-Alloy (HSLA) Steel: Combines carbon steel’s affordability with enhanced strength-to-weight ratios for fuel-efficient designs.
• Smart Mirror Integration: Frames now house cameras or sensors for blind-spot monitoring or lane-departure warning systems.
• 3D-Printed Frames: Custom prototypes or low-volume production using additive manufacturing for complex geometries.

Conclusion

Carbon steel rearview mirror frames offer a robust, economical solution for automotive mirror support, balancing strength, adjustability, and corrosion resistance. With advancements in coatings and lightweight alloys, these frames continue to evolve, meeting the demands of modern vehicle design while ensuring driver safety and comfort.

For OEM partnerships, aftermarket distribution, or custom frame development, contact [Your Company Name]—a trusted supplier of automotive mirror components.
