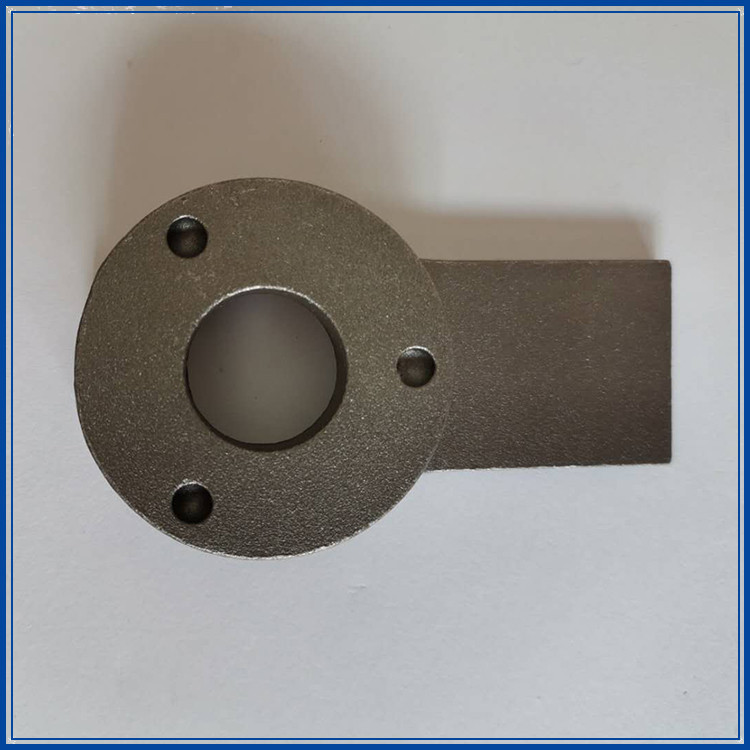

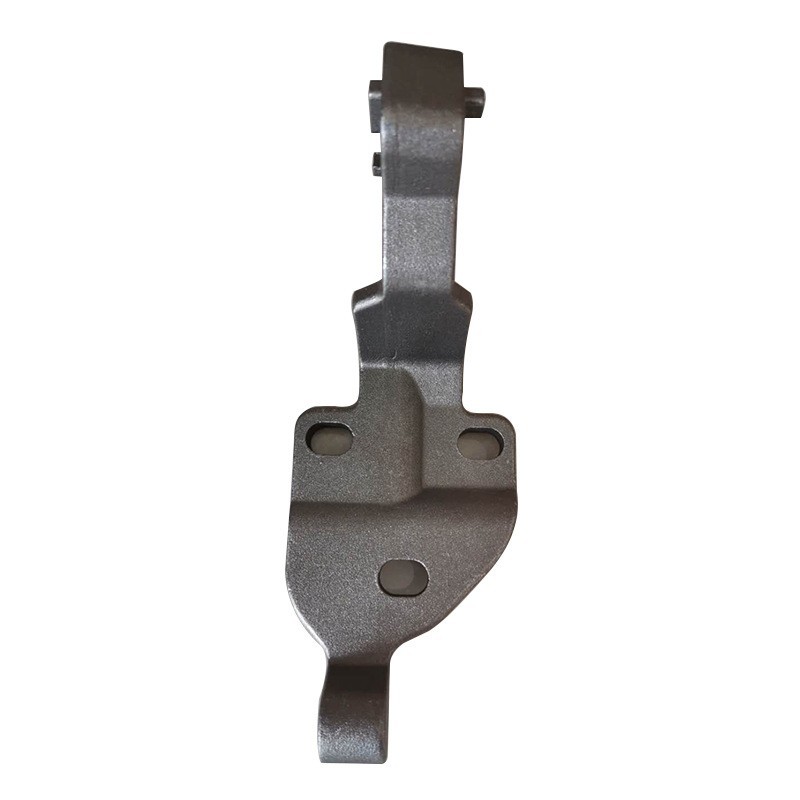

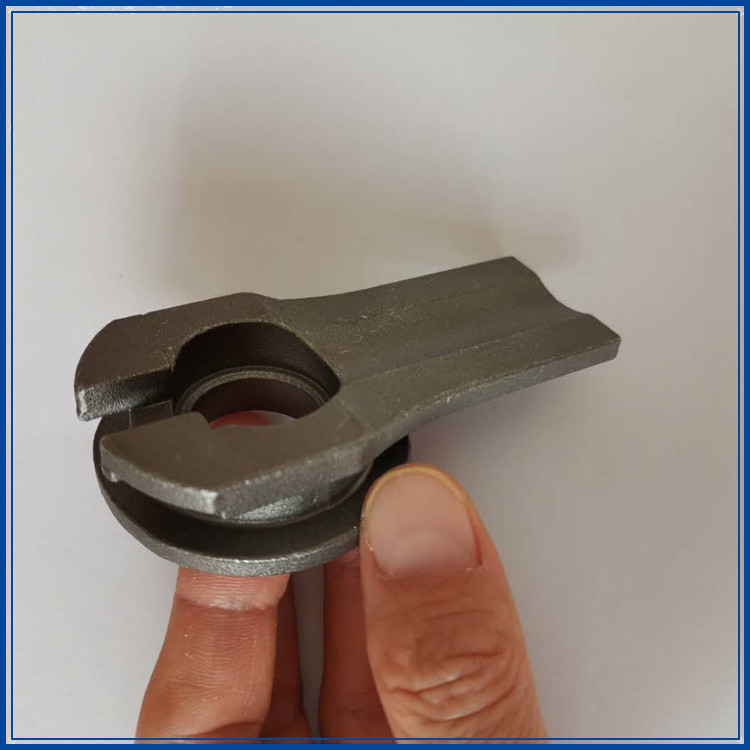

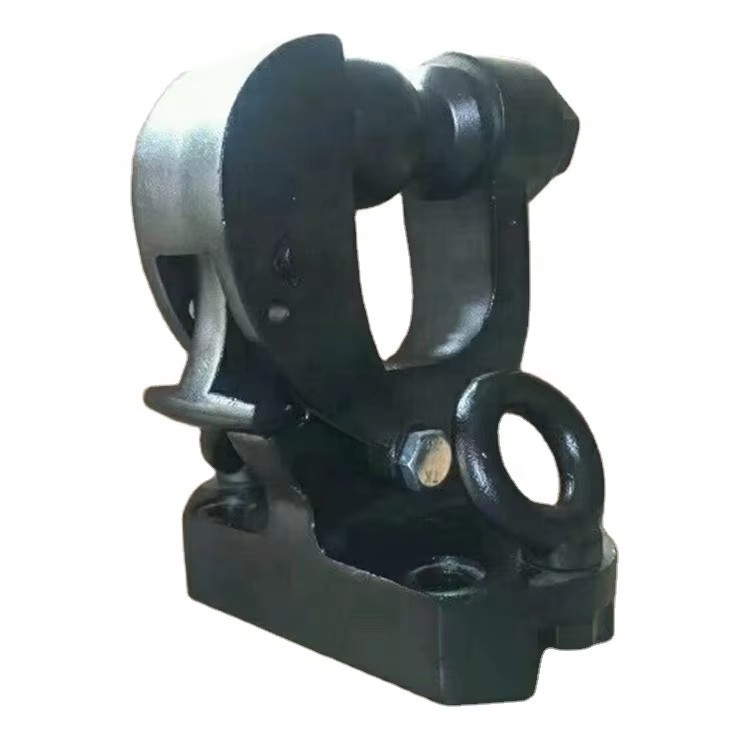

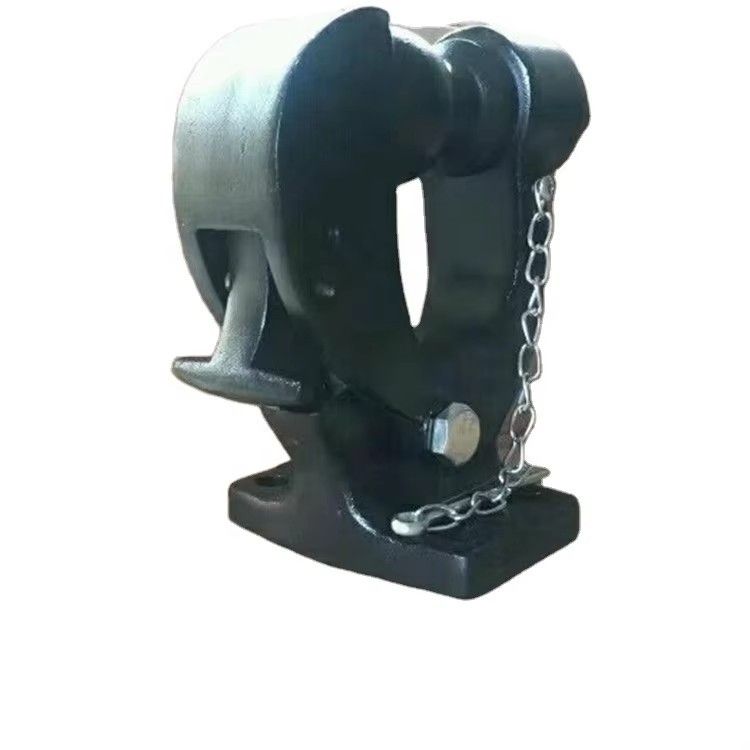

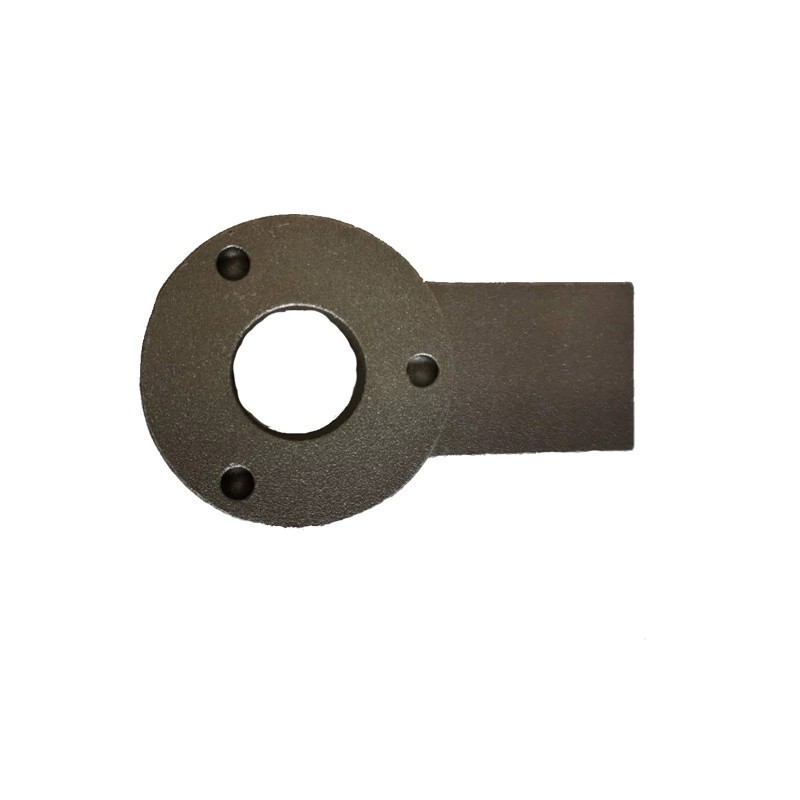

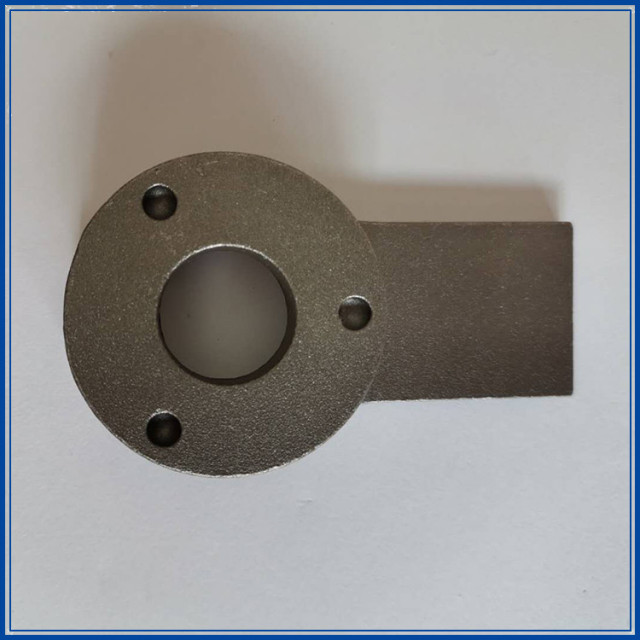

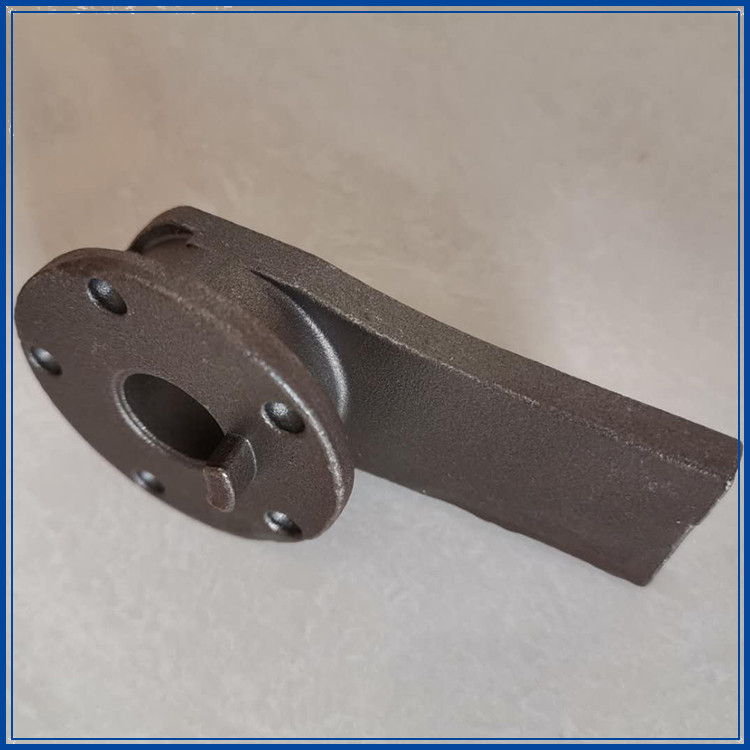

Name: Investment Casting (Silica Sol Precision Casting) Carbon Steel Automotive Parts
Brand: jzcastings

Description

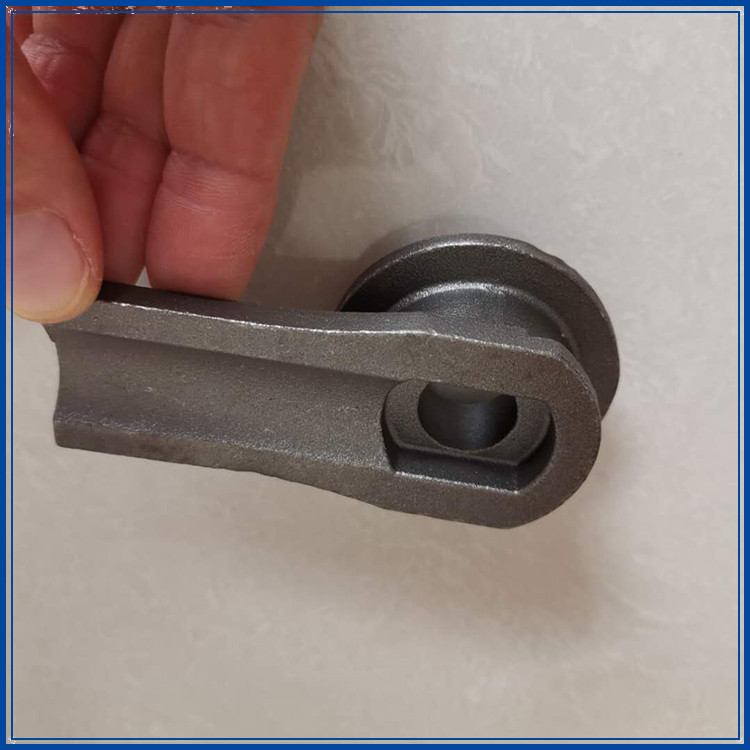

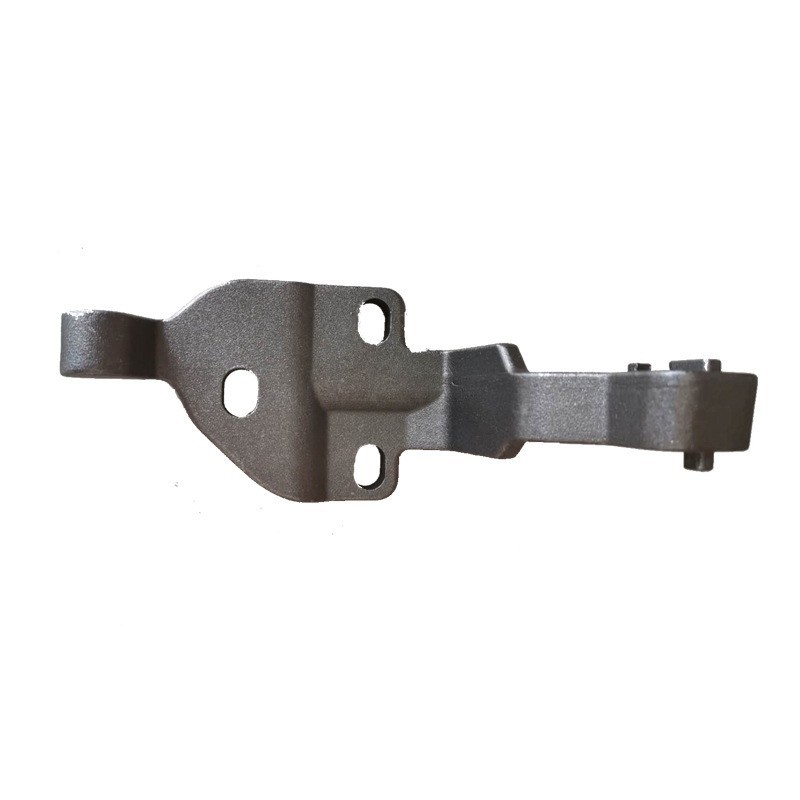

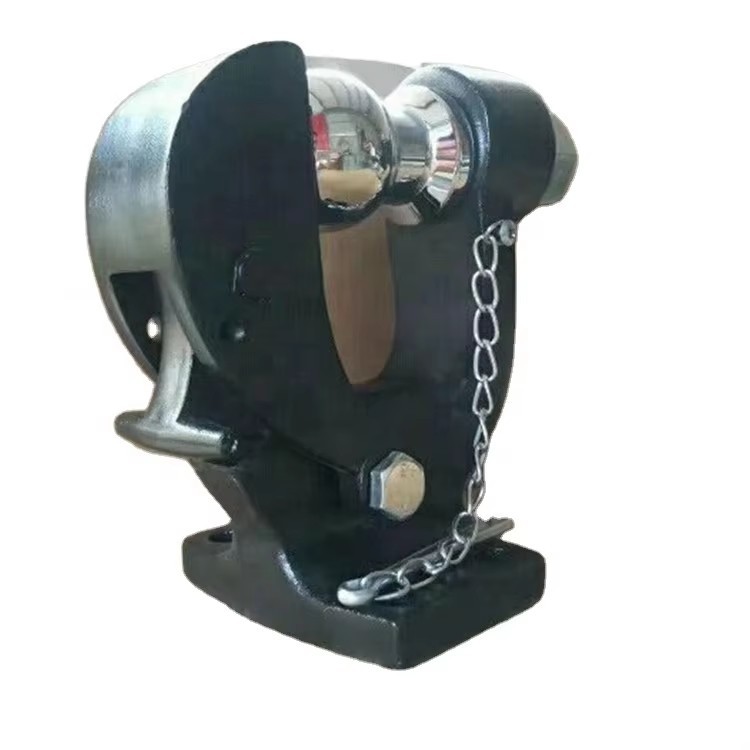

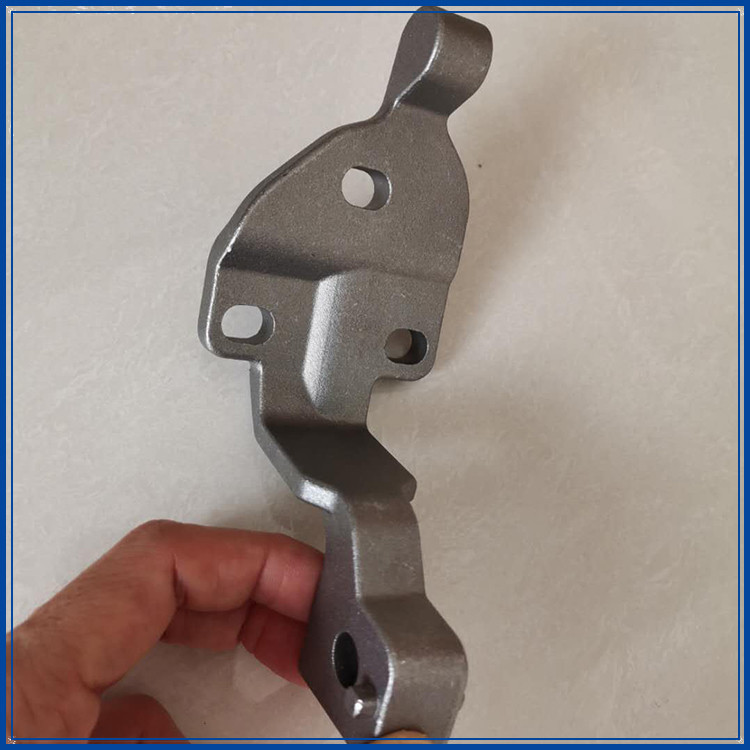

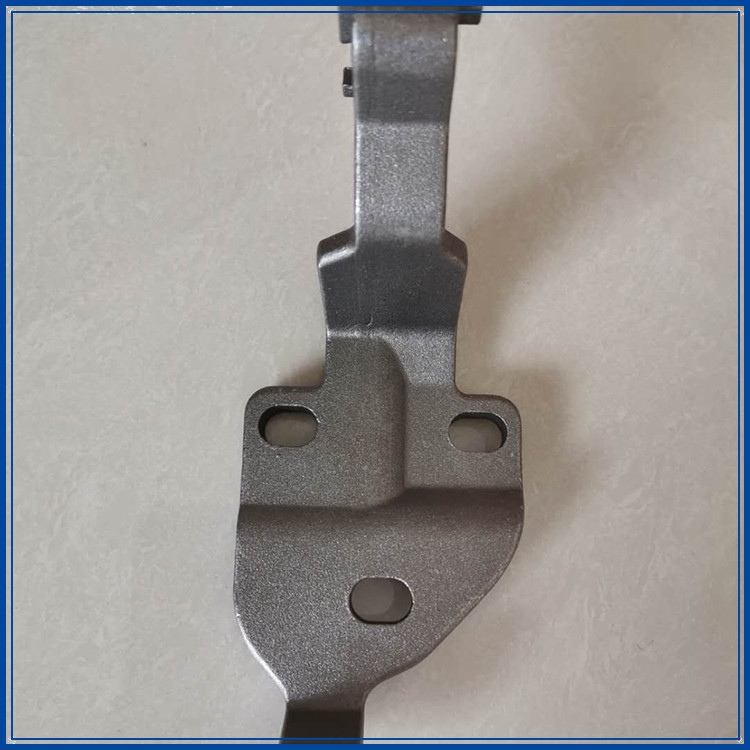

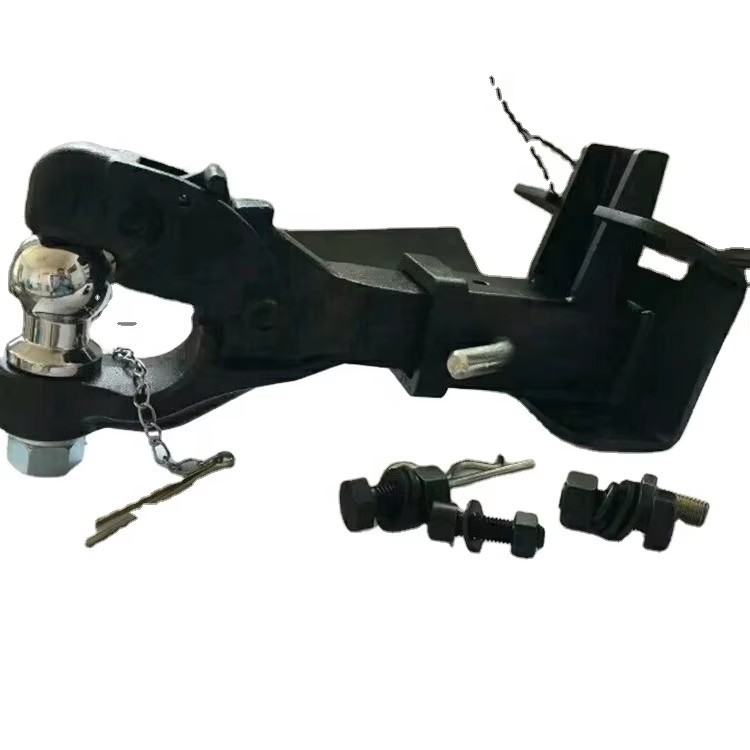

Carbon Steel Automotive Parts

Carbon steel automotive parts are essential components in vehicle manufacturing, playing a critical role in ensuring structural integrity, safety, and performance. Primarily composed of iron and carbon, these parts are highly valued for their excellent mechanical properties, high tensile strength, and cost-effectiveness. They are widely utilized across various vehicle systems, including the chassis, suspension, powertrain, and body structures.

Key Features & Characteristics:

High Strength & Durability: Carbon steel offers superior load-bearing capacity and fatigue resistance, making it ideal for components subjected to high stress and continuous vibration.
Excellent Formability & Machinability: Depending on the carbon content, these steels can be easily stamped, forged, or machined into complex shapes, facilitating high-volume automotive manufacturing.
Cost-Effectiveness: Compared to alloy steels or alternative lightweight materials, carbon steel provides a highly economical solution without compromising structural safety.
Recyclability: Carbon steel is 100% recyclable, aligning with the automotive industry's sustainability and circular economy goals.

Common Applications:

Chassis & Suspension: Control arms, tie rods, leaf springs, and axle shafts.
Powertrain & Drivetrain: Gears, shafts, flanges, and engine brackets.
Body & Safety Structure: Seat frames, bumper reinforcements, and door impact beams (often utilizing advanced high-strength carbon steel variants).
General Hardware: Bolts, nuts, washers, and custom machined fittings.

Note on Manufacturing & Treatment:
Since standard carbon steel is susceptible to corrosion, automotive parts made from this material typically undergo surface treatments such as zinc plating, black oxide coating, or e-coating to enhance corrosion resistance and extend service life. For critical safety applications, advanced high-strength steel (AHSS) variants are often selected to achieve optimal weight reduction and crash energy absorption.

Would you like me to tailor this introduction for a specific type of carbon steel auto part (e.g., suspension components, forged gears, or stampings), or add specific material grades (e.g., AISI 1045, 1020)?

Silica Sol Precision Casting Process

STEP 01

Wax Pattern Creation

Wax patterns are produced according to the customer’s CAD drawings or samples. This step determines the final dimensions, shape, and surface quality.

STEP 02

Shell Building with Silica Sol Slurry

The wax pattern is repeatedly dipped in a high-purity silica sol slurry and coated with refractory zircon sand, forming a strong ceramic shell.

STEP 03

Drying

Each layer is dried in a constant temperature and humidity environment to avoid cracks and ensure shell integrity.

STEP 04

Dewaxing & Shell Sintering

Wax is removed, and the ceramic shell is sintered at high temperature to achieve strength and dimensional stability.

STEP 05

Metal Pouring

Molten stainless steel 304, 316, carbon steel, alloy steel, or non-ferrous alloys are poured into the shell.

STEP 06

Shell Removal & Cleaning

The shell is broken away, and the raw casting is cleaned of any residual material.

STEP 07

Heat Treatment & Finishing

Heat treatments such as annealing, hardening, tempering, or surface hardening are applied to improve mechanical properties. Surface treatments like electropolishing or mirror polishing are available upon request.

Advantages of Silica Sol Investment Casting

· High Dimensional Accuracy – Tolerance grade CT4–CT6, ISO 8062 standards.
· Excellent Surface Finish – Ra 1.6–3.2 μm as-cast, Ra 0.8–3.2 μm after machining.
· Complex Shape Capability – Thin walls (0.5–0.8 mm) and intricate geometries.
· Material Versatility – Stainless steel, carbon steel, alloy steel, aluminum alloys, copper alloys.
· Reduced Machining – Near-net-shape production reduces post-processing time and cost.
· OEM & ODM Service – Fully customized according to drawings or samples.

Technical Specifications

Parameter	Specification
Materials	SS304 (CF8 / 1.4308), 304L (CF3), 316 (CF8M / 1.4408), 316L (CF3M / 1.4404 / 1.4409), WCB (1.0619), Carbon Steel #25/#35/#45, Alloy Steel, Aluminum Alloy, Copper Alloy
Casting Process	Silica Sol Precision Casting / Investment Casting / Lost-Wax Casting
Machining	CNC Machining Centers, CNC Lathes
Casting Tolerance	ISO 2768-mK, VDG P690 D1-D2, ISO 8062-3-2007 DCTG4-6, GCTG4-6
Casting Roughness	Ra 1.6–3.2 μm
Machining Tolerance	±0.005 mm, ISO 2768-f
Machining Roughness	Ra 0.8–3.2 μm
Weight Range	0.01–150 kg
Min. Wall Thickness	0.5–0.8 mm
Furnace Capacity	200 T
Finishing	Acid Passivation, Electropolishing, Mirror Polishing, Custom Surface Treatments
Heat Treatment	Annealing, Normalizing, Hardening, Tempering, Surface Hardening

Applications

Our silica sol precision castings are widely used in:
· Aerospace components
· Automotive parts & valve bodies
· Marine and shipbuilding hardware
· Medical instruments & surgical tools
· Industrial machinery & pump housings
· Agricultural machinery parts
· Architectural fittings & decorative hardware
· Pipe fittings & flanges
· OEM/ODM custom projects
