1. Definition & Core Function：
A stainless steel nozzle is a precision-engineered component designed to control the direction, flow rate, and atomization pattern of liquids or gases in industrial processes. Its primary function is to ensure uniform spray distribution, corrosion resistance, and long-term durability under harsh operating conditions.
Key Applications:
Fluid Atomization: Combustion systems (e.g., gas turbines, industrial burners).
Surface Coating: Paint spraying, food-grade ingredient dispensing, pharmaceutical encapsulation.
Process Control: Chemical injection, water jet cutting, agricultural pesticide delivery.
2. Material Advantages: Why Stainless Steel?
Property Performance Benefit
Corrosion Resistance Withstands acidic/alkaline fluids (e.g., saltwater, chemicals) without degradation.
High-Temperature Tolerance Operates in environments up to 800°C (e.g., metal processing, exhaust systems).
Mechanical Strength Resists wear, impact, and pressure fluctuations (suitable for high-pressure systems).
Hygienic Standards Meets FDA/3A requirements for food/pharmaceutical applications (non-reactive surface).
3. Key Design Features
A. Precision Orifice Geometry
Micro-Drilled Holes: Laser-cut orifices as small as 0.05 mm ensure consistent droplet size (e.g., 10–200 μm for combustion applications).
Swirl Chambers: Induce turbulent flow for enhanced atomization (critical for fuel-air mixing in burners).
B. Modular Construction
Interchangeable Tips: Allows quick adaptation to different spray patterns (e.g., flat fan, full cone, hollow cone).
Threaded Connections: Compatible with standard fittings (e.g., NPT, BSP) for easy integration into pipelines.
C. Surface Treatments
Electropolishing: Reduces surface roughness (Ra < 0.2 μm) to minimize bacterial adhesion in sanitary applications.
Passivation Coating: Enhances corrosion resistance by forming a protective chromium oxide layer.
4. Industry-Specific Solutions
A. Combustion Systems
Gas Turbine Fuel Nozzles:
Stainless steel 316L with DLN (Dry Low NOx) technology for pre-mixed combustion, reducing NOx emissions by >50%.
Example: GE’s 9HA turbine nozzles achieve 64% thermal efficiency under extreme conditions.
Industrial Burner Nozzles:
Dual-Fluid Atomization: Combines steam/air with fuel for fine droplet dispersion (e.g., Sauter Mean Diameter <50 μm).
B. Food & Beverage Processing
Sanitary Spray Nozzles:
316L stainless steel with tri-clamp connections for CIP (Clean-in-Place) systems.
Used for applying flavorings, preservatives, or lubricants without contamination risks.
C. Chemical Manufacturing
Corrosion-Resistant Nozzles:
Hastelloy® C-276 or Alloy 22 coatings for handling hydrochloric acid (HCl) or sulfuric acid (H₂SO₄).
5. Performance Metrics & Innovations
Spray Angle Tolerance: ±2° to ensure uniform coverage across large surfaces (e.g., automotive painting).
Flow Rate Repeatability: <±1% over 10,000 cycles (critical for batch consistency in pharmaceuticals).
Additive Manufacturing:
3D-printed nozzles with conformal cooling channels improve thermal management in high-heat applications (e.g., metal 3D printing support material removal).
6. Environmental & Cost Benefits
Reduced Downtime: Corrosion resistance extends service life by 3–5x compared to brass or plastic nozzles.
Waste Minimization: Precise flow control cuts overspray by 15–30%, lowering material costs.
Sustainability: Stainless steel is 100% recyclable, aligning with circular economy goals.
7. Leading Suppliers & Product Lines
Supplier Key Product Series Innovation
Spraying Systems Co. FullJet®, VeeJet® Nozzles Ceramic-lined stainless steel for abrasive slurry applications.
Lechler GmbH iNozzle® Series AI-optimized orifice design for dynamic flow adjustment.

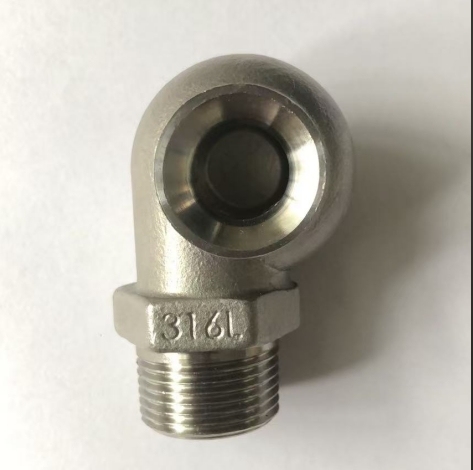

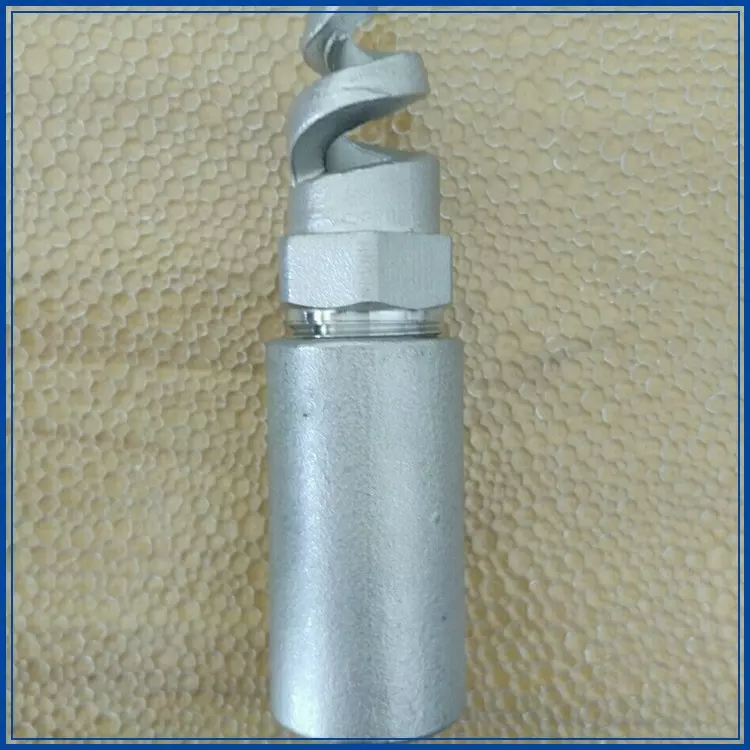

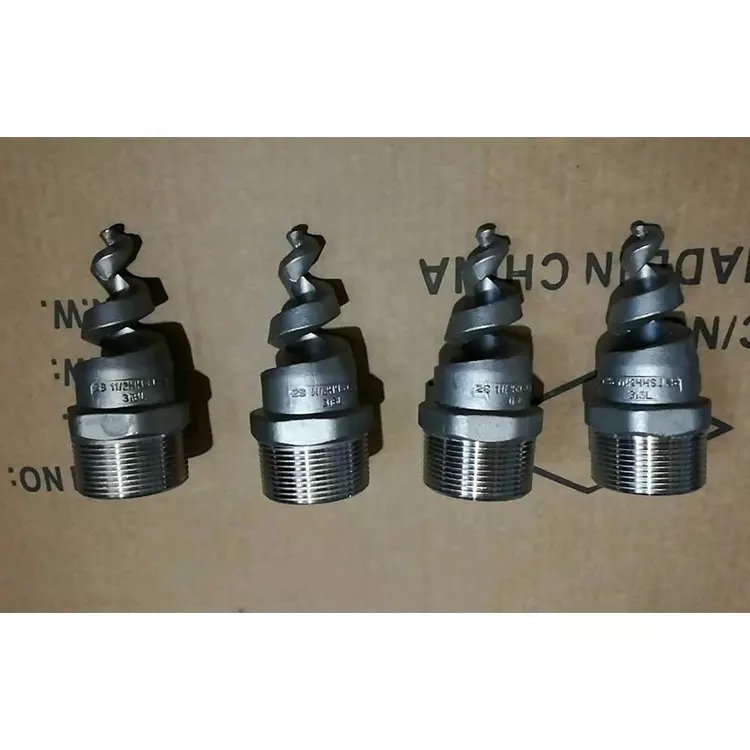

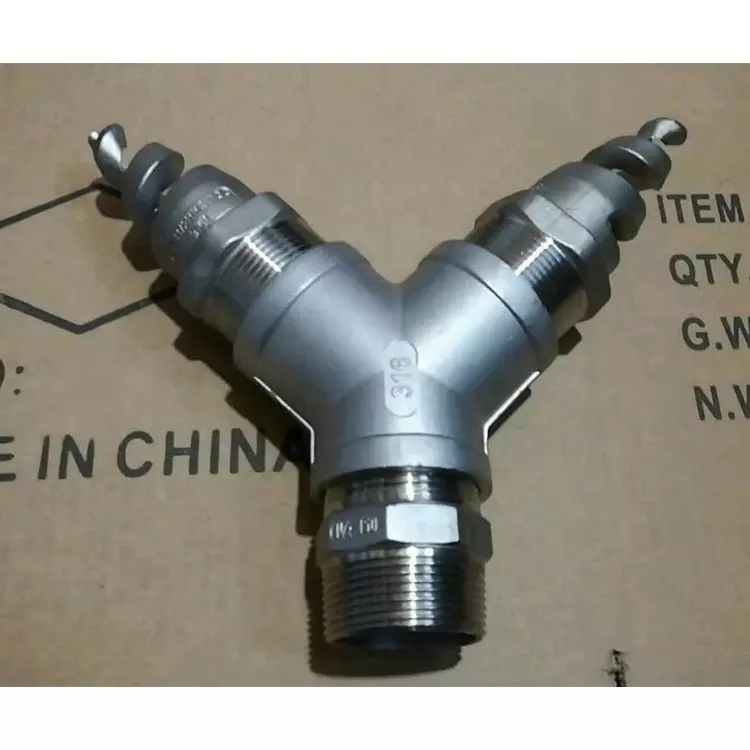

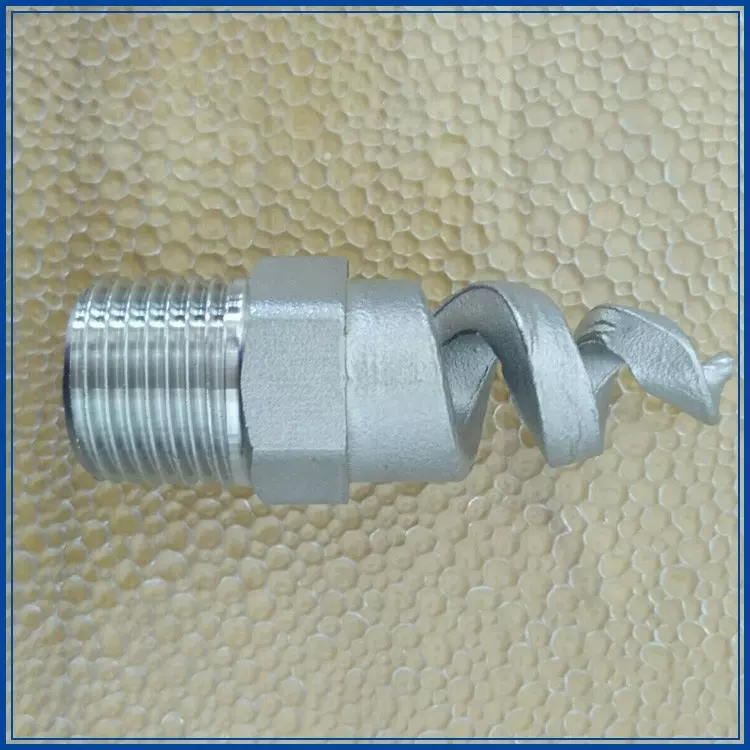

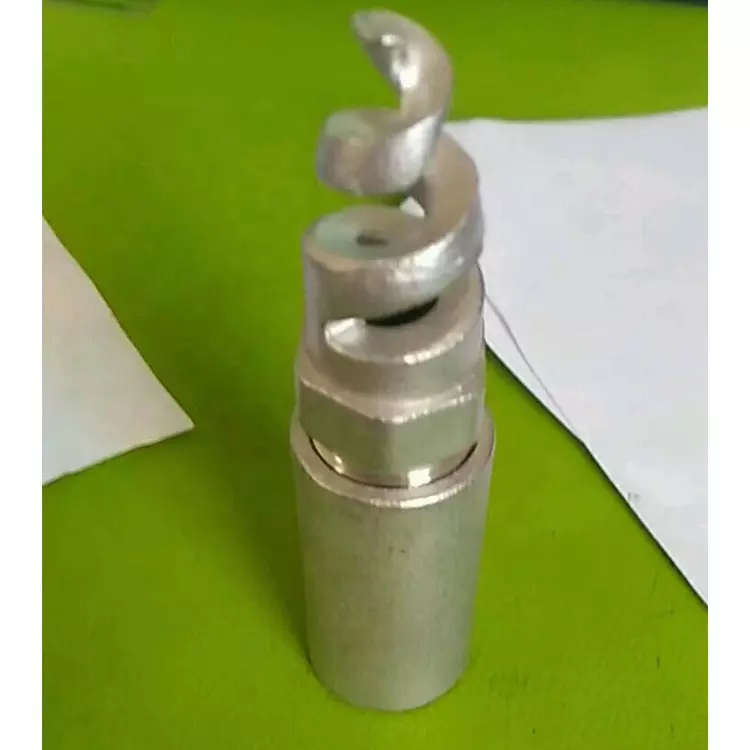

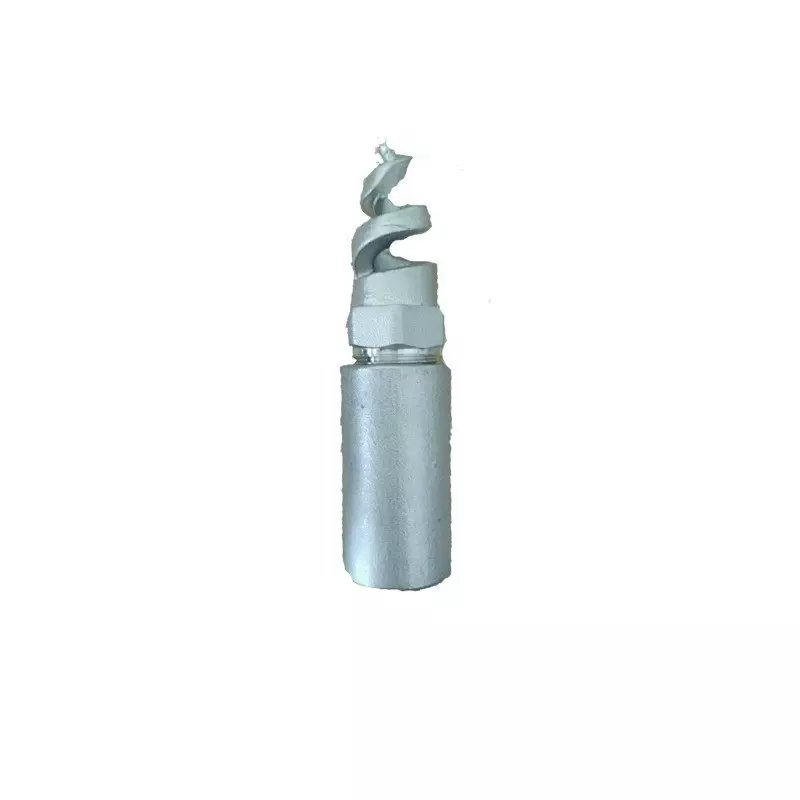

BETE Fog Nozzle WhirlJet®, SpiralJet® Spiral-shaped nozzles for maximum impact in tank cleaning.
8. Conclusion：
Stainless steel nozzles are indispensable in industries demanding precision, durability, and hygiene. Advances in materials science (e.g., superalloys) and manufacturing (e.g., 3D printing) continue to expand their applications, from aerospace propulsion to sustainable food production.
For custom nozzle solutions or technical consultations, contact [Your Company Name]—a global leader in stainless steel fluid dispensing technologies.
Silica Sol Precision Casting Process
STEP 01
Wax Pattern Creation
Wax patterns are produced according to the customer’s CAD drawings or samples. This step determines the final dimensions, shape, and surface quality.
STEP 02
Shell Building with Silica Sol Slurry
The wax pattern is repeatedly dipped in a high-purity silica sol slurry and coated with refractory zircon sand, forming a strong ceramic shell.
STEP 03
Drying
Each layer is dried in a constant temperature and humidity environment to avoid cracks and ensure shell integrity.
STEP 04
Dewaxing & Shell Sintering
Wax is removed, and the ceramic shell is sintered at high temperature to achieve strength and dimensional stability.
STEP 05
Metal Pouring
Molten stainless steel 304, 316, carbon steel, alloy steel, or non-ferrous alloys are poured into the shell.
STEP 06
Shell Removal & Cleaning
The shell is broken away, and the raw casting is cleaned of any residual material.
STEP 07
Heat Treatment & Finishing
Heat treatments such as annealing, hardening, tempering, or surface hardening are applied to improve mechanical properties. Surface treatments like electropolishing or mirror polishing are available upon request.
Advantages of Silica Sol Investment Casting
· High Dimensional Accuracy – Tolerance grade CT4–CT6, ISO 8062 standards.
· Excellent Surface Finish – Ra 1.6–3.2 μm as-cast, Ra 0.8–3.2 μm after machining.
· Complex Shape Capability – Thin walls (0.5–0.8 mm) and intricate geometries.
· Material Versatility – Stainless steel, carbon steel, alloy steel, aluminum alloys, copper alloys.
· Reduced Machining – Near-net-shape production reduces post-processing time and cost.
· OEM & ODM Service – Fully customized according to drawings or samples.
Technical Specifications
|
Parameter
|
Specification
|
|
Materials
|
SS304 (CF8 / 1.4308), 304L (CF3), 316 (CF8M / 1.4408), 316L (CF3M / 1.4404 / 1.4409), WCB (1.0619), Carbon Steel #25/#35/#45, Alloy Steel, Aluminum Alloy, Copper Alloy
|
|
Casting Process
|
Silica Sol Precision Casting / Investment Casting / Lost-Wax Casting
|
|
Machining
|
CNC Machining Centers, CNC Lathes
|
|
Casting Tolerance
|
ISO 2768-mK, VDG P690 D1-D2, ISO 8062-3-2007 DCTG4-6, GCTG4-6
|
|
Casting Roughness
|
Ra 1.6–3.2 μm
|
|
Machining Tolerance
|
±0.005 mm, ISO 2768-f
|
|
Machining Roughness
|
Ra 0.8–3.2 μm
|
|
Weight Range
|
0.01–150 kg
|
|
Min. Wall Thickness
|
0.5–0.8 mm
|
|
Furnace Capacity
|
200 T
|
|
Finishing
|
Acid Passivation, Electropolishing, Mirror Polishing, Custom Surface Treatments
|
|
Heat Treatment
|
Annealing, Normalizing, Hardening, Tempering, Surface Hardening
|
Applications
Our silica sol precision castings are widely used in:
· Aerospace components
· Automotive parts & valve bodies
· Marine and shipbuilding hardware
· Medical instruments & surgical tools
· Industrial machinery & pump housings
· Agricultural machinery parts
· Architectural fittings & decorative hardware
· Pipe fittings & flanges
· OEM/ODM custom projects
Quality Assurance
Create leading brand of China foreign trade internet marketing outsourcing service
Get a Free Quotation TodaySend us your drawings or samples, and our engineering team will provide technical consultation, 3D modeling, and a competitive quotation within 24 hours.
Why Choose Us
32+ years
professional
industry production experience and
experienced R&D team and
international trade service team.
Attentive pre-sales
And after-sales service. timely
resolution of the customers'
problems.
Quality Assurance
Strict material
selection and quality inspection system.
strict QC system to guarantee the
superior quality. The best products
at the most reasonable price.
OEM&ODM Customisable
According to the customers' drawings
or products.we have experienced
techinicians to help you design
what you want.
Quality Assurance
02Jarzoo ensures the highest quality standards:
100% visual & pressure testing before shipment
01
No burrs, perfect threads, and smooth surfaces
02
In-house chemical analysis of molten material before casting
03
Traceability: All test samples retained for 2 years
04
Quality Assurance:strict material selection and quality inspection system to guarantee the superior quality
0
About Jarzoo
Hebei Jarzoo Metal Products Co., Ltd. specializes in custom precision castings using advanced investment casting (silica sol/lost wax). With decades of experience since the 1990s and a complete production line including mold design, casting, machining, and surface treatment, we serve industries ranging from brewing and food processing to automotive and aerospace.
We support full OEM/ODM capabilities, fast sampling, and reliable international logistics from our well-located base near Beijing and Tianjin ports.
Packaging & Delivery
Packaging: Secure carton or pallet packing
Delivery Time: Samples within 25 days; bulk order within 60 days
Shipping: Global delivery supported
Payment Terms:
Orders ≤ $1000: 100% advance
Orders ≥ $1000: 30% deposit, 70% before shipment
FAQ
Q: Do you offer samples?
A: Yes, sample is available with MOQ of 1 pc.
Q: Can I customize the logo or size?
A: Absolutely. We support custom logos, graphics, and non-standard sizes with a minimum order of 100 pieces.
Q: What materials can you provide?
A: We offer a wide range: SS304, SS316, WCB, alloy steel, carbon steel, copper alloys, and more.
Q: Can you trace materials and production batches?
A: Yes. All testing data and samples are archived for traceability.
