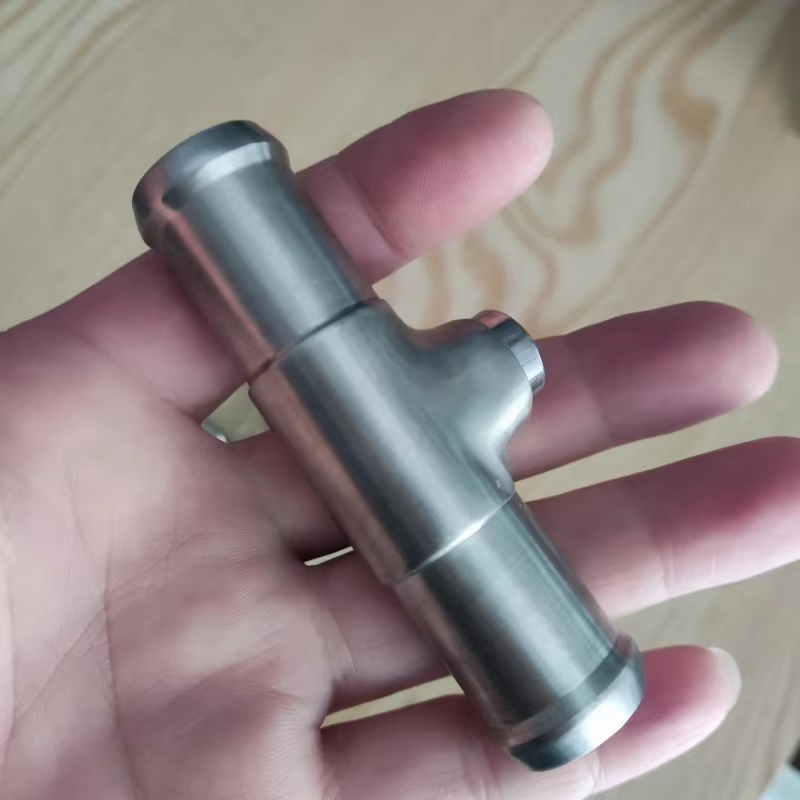

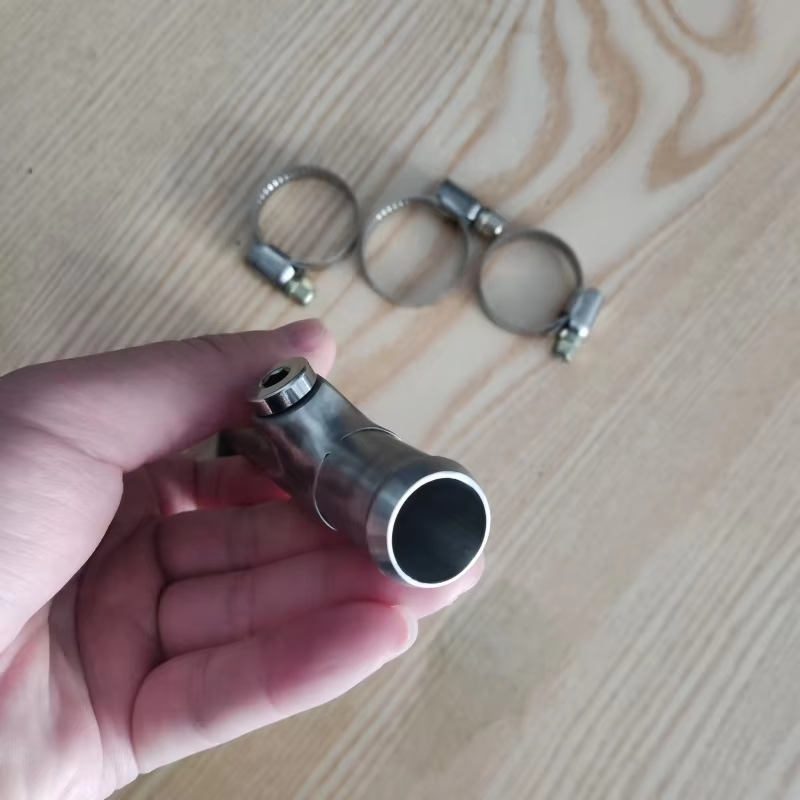

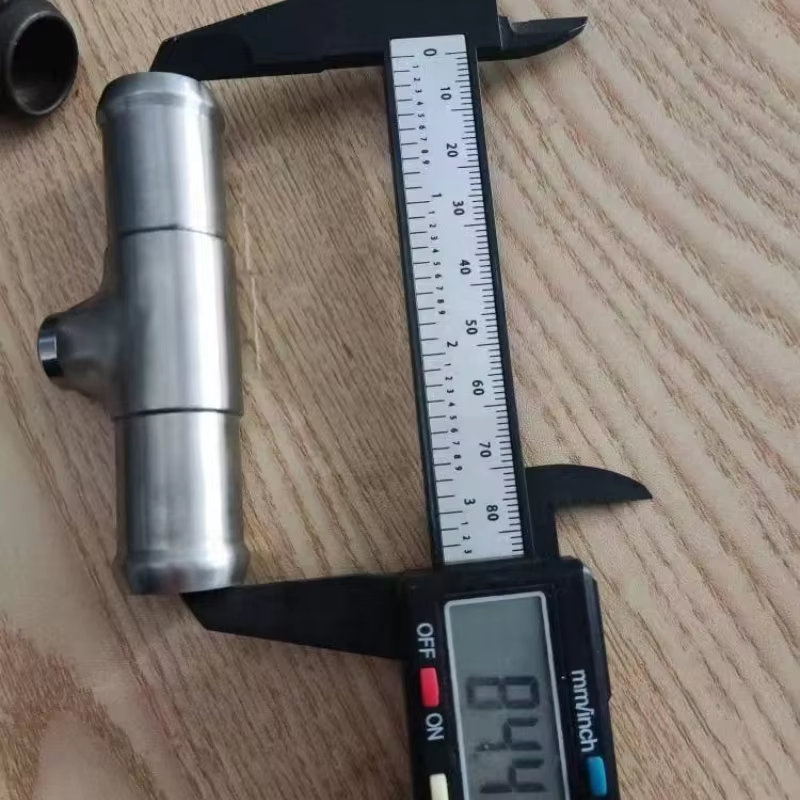

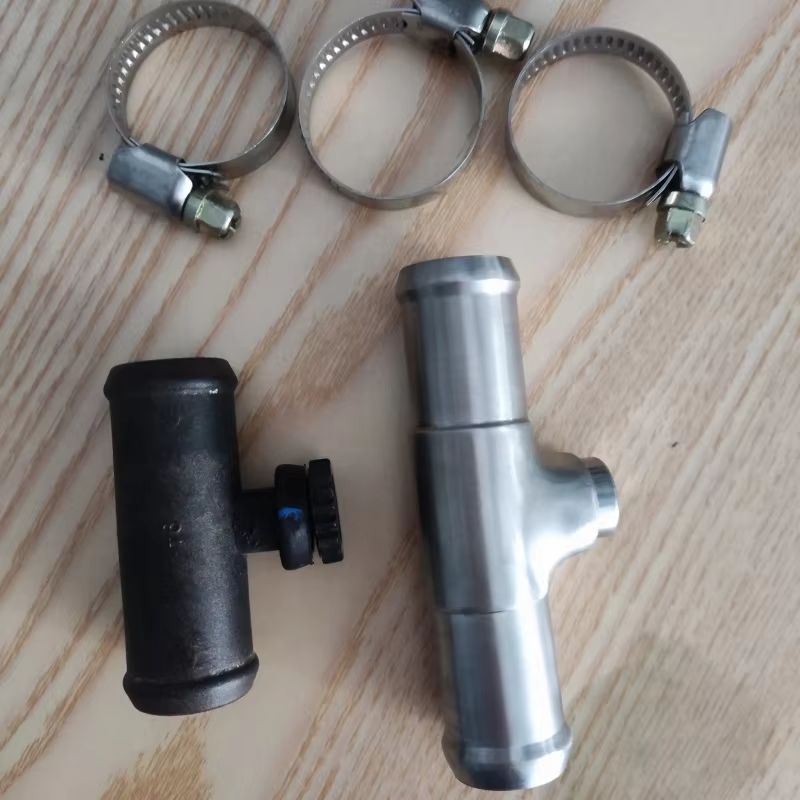

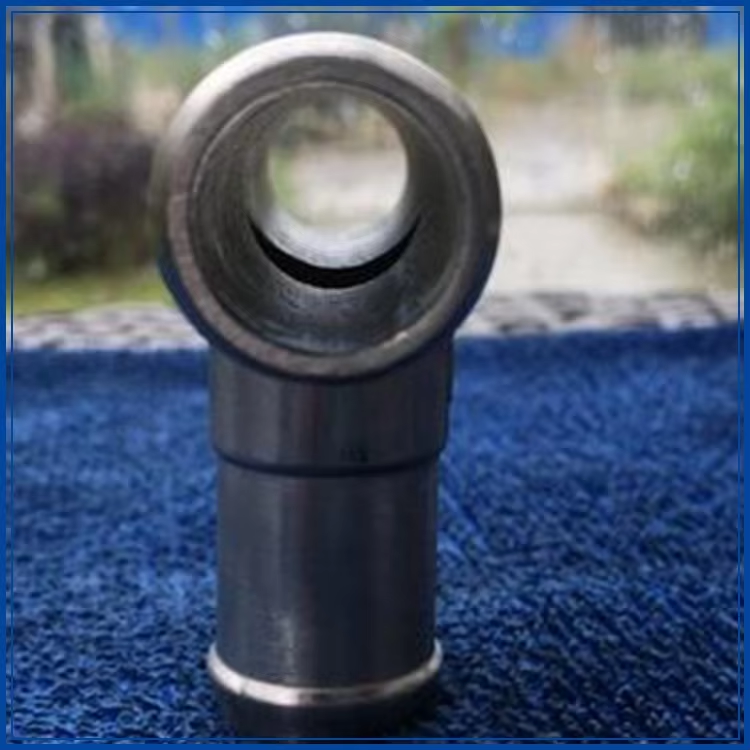

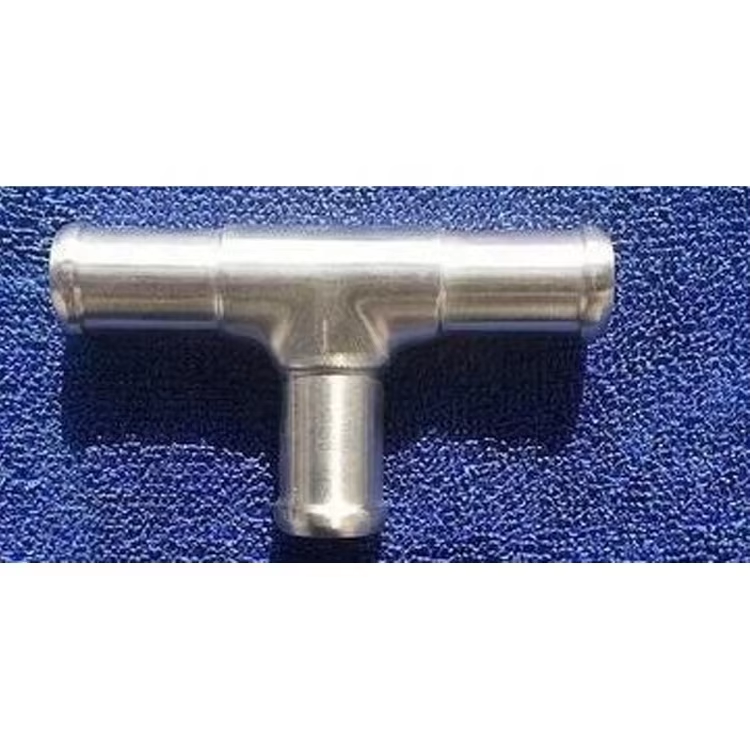

Custom Stainless Steel 304 316 Hose Tail Tee

Basic Information

Automotive Pagoda Tee Technical Introduction
The automotive pagoda tee, commonly referred to as a "pagoda-style three-way connector" or "tapered tee fitting," is a specialized pipe joint widely used in automotive fluid systems for its unique structural and functional advantages

1. Definition & Structural Characteristics

A pagoda tee is a three-way pipe connector featuring a tapered or stepped design on the branch ports, resembling the multi-tiered structure of an East Asian pagoda. This design enables:

• Universal Compatibility: The tapered ports (typically with standard thread sizes like 1/4", 3/8", or 1/2") allow seamless connection to hoses or pipes of varying diameters without requiring additional adapters.
• Compact Layout: The Y-shaped or T-shaped configuration optimizes space in crowded engine bays or undercarriages, facilitating routing of fuel, coolant, or air lines.
• Material Durability: Most automotive-grade pagoda tees are made from 304 stainless steel or brass, offering high resistance to corrosion, vibration, and extreme temperatures (e.g., -40°C to 150°C).

2. Key Applications in Automotive Systems

Pagoda tees are integral to the following systems:

• Fuel System: Connects fuel lines from the tank, pump, and injectors, ensuring stable flow to the engine.
• Cooling System: Diverts coolant between the radiator, engine block, and heater core, maintaining optimal operating temperature.
• Air Intake/Exhaust: Routes air or exhaust gases in turbocharged or naturally aspirated engines, often with integrated sensors for monitoring.
• Pneumatic Systems: Used in air suspension or brake lines to split or merge compressed air pathways.

Example: In a modern turbocharged engine, a pagoda tee may split the compressed air from the turbocharger into two paths: one feeding the intercooler and another bypassing it via a wastegate for boost control.

3. Technical Advantages

• Leak-Proof Design: The tapered threads create a metal-to-metal seal when tightened, eliminating the need for thread sealant in most cases.
• Pressure Resistance: Rated for high-pressure applications (e.g., up to 10 bar in fuel systems), ensuring reliability under demanding conditions.
• Vibration Damping: The solid construction minimizes flexing, reducing the risk of fatigue failure in high-vibration environments like engine compartments.
• Ease of Installation: Quick-connect versions with O-ring seals are available for rapid assembly/disassembly during maintenance.

4. Industry Standards & Terminology

• SAE/ISO Compliance: Many pagoda tees adhere to standards like SAE J1508 (hose fittings) or ISO 8434-1 (metric tube fittings).
• Common Names:
  • Pagoda Tee (UK/Europe)
  • Tapered Tee (North America)
  • Bullhead Tee (industrial contexts)
  • Y-Joint (when branched at 45°–60° angles)

5. Selection Criteria

When choosing a pagoda tee for automotive use, consider:

• Material: Stainless steel for corrosion resistance; brass for cost-sensitive applications.
• Thread Type: NPT (tapered pipe thread) for North American systems; BSP (British Standard Pipe) for European vehicles.
• Flow Capacity: Ensure the internal bore diameter matches the system’s flow requirements to avoid pressure drops.
• Temperature Rating: Select a tee rated for the expected operating temperature range (e.g., -40°C to 120°C for coolant lines).

6. Example Product Specification

A typical automotive pagoda tee might feature:

• Material: 304 stainless steel
• Thread Size: 1/2" NPT (male) x 3/8" NPT (female branch)
• Pressure Rating: 15 bar (217 psi)
• Temperature Range: -50°C to 200°C
• Applications: Fuel rails, coolant hoses, or air intake plumbing

Conclusion

The automotive pagoda tee is a critical component for efficient fluid management in vehicles, combining compact design, durability, and ease of installation. Its tapered structure and high-pressure capabilities make it indispensable in modern engine systems, from fuel delivery to turbocharging. When selecting a tee, prioritize material compatibility, thread standards, and flow requirements to ensure optimal performance and longevity.

Core Features of Stainless Steel Barb Fittings

Multi-tiered tapered barbs provide a tight, clamp-free seal on various soft hoses. Resists vibration and pressure changes to prevent disconnection.

Constructed from 304/316/316L stainless steel for superior durability in harsh environments including chemical and marine applications.

Full-bore design minimizes pressure loss and improves system efficiency with unobstructed fluid transfer.

Allows quick and easy hose attachment without tools, reducing assembly time and maintenance costs.

Supports multiple connection types (NPT, BSP, tri-clamp, etc.) and is suited for use in

water, air, food, chemical, and industrial systems.

Advantages

• Cost-Effective: Simplifies inventory with single-part solutions
• Extended Service Life: Stainless steel and high-grade seals ensure durability in harsh conditions
• Enhanced Safety: Features fire-resistant (ATEX-compliant) and leak-proof operation
• Eco-Friendly: Reusable and recyclable to support sustainability
• Efficient Flow: Reduces pressure drop by up to 98% for compact system design
• Quick Installation: Tool-free assembly cuts installation time by 70%
• Broad Compatibility: Suitable for both water-glycol and dielectric fluids

Technical Specifications

When selecting stainless steel barb fittings—also called hose barb connectors or pagoda-style fittings—it is essential to review the technical specifications to ensure compatibility with your fluid transfer system.

Applications of Stainless Steel Barb Fittings and Valves

• Industrial Hydraulics & Pneumatics- Provides reliable, vibration-resistant connections for manufacturing and pneumatic equipment.
• Thermal Management & Cooling Systems- Ensures efficient leak-free cooling in data centers, EV batteries, and energy storage units.
• Chemical & Petrochemical Processing- Resists corrosive fluids in harsh environments with long-lasting 316L stainless steel.
• Food & Beverage Production- Delivers hygienic, sanitary-compliant fluid transfer for food and beverage processing.
• Marine & Offshore Engineering- Withstands saltwater corrosion in marine and offshore applications for durable performance.

Stainless Steel Tower-Type Valves Overview

Stainless steel tower-type valves - also known as pagoda-style valves or barb-head valves - are specialized devices for secure and reliable fluid connections.

They combine a valve mechanism with a tapered barb fitting, making them suitable for flow regulation and quick hose attachment.

Applications of Tower-Type Valves

Thanks to their corrosion resistance and flexible configurations, stainless steel tower-type valves are widely applied in:

• Industrial hydraulics
• Chemical processing
• Food and beverage systems
• Other demanding fluid control applications

Selection Guide

When selecting stainless steel tower-type valves (also known as pagoda-style valves) or stainless steel barb-head valves, there are several key factors to keep in mind.

Whether you're using corrosion-resistant valves or barbed fittings, both offer durable engineering, strong chemical resistance, and user-friendly installation. These features make them essential components in fluid control systems across various sectors, particularly in industrial hydraulics and temperature-sensitive applications. Their adaptability and consistent performance support reliability in demanding environments.

Customization Options

For projects requiring unique branding or specifications, these stainless steel hose barb fittings can be customized to meet specific requirements.

Certifications & Quality Assurance

Manufactured under stringent ISO-certified systems (e.g., ISO 9001)
SGS-verified quality checks ensure material and performance reliability
Optionally produced under GRS-certified processes (Global Recycled Standard), supporting eco-friendly and sustainable production

Packaging & Shipping

Products are carefully protected with spark-proof film or kraft paper, then boxed or palletized. Reinforced corners and custom packaging help withstand long-distance sea or truck transport, ensuring safe arrival at customer destinations.

Packaging Details	Carton/Palette/Customized
Individual Packaging Size	Example: 8X10X15 cm (subject to change)
Single Item Gross Weight	Example: 0.50 KG (subject to change)
Delivery Time	7-30 days after payment
Shipping Method	Sea/Air/Courier
