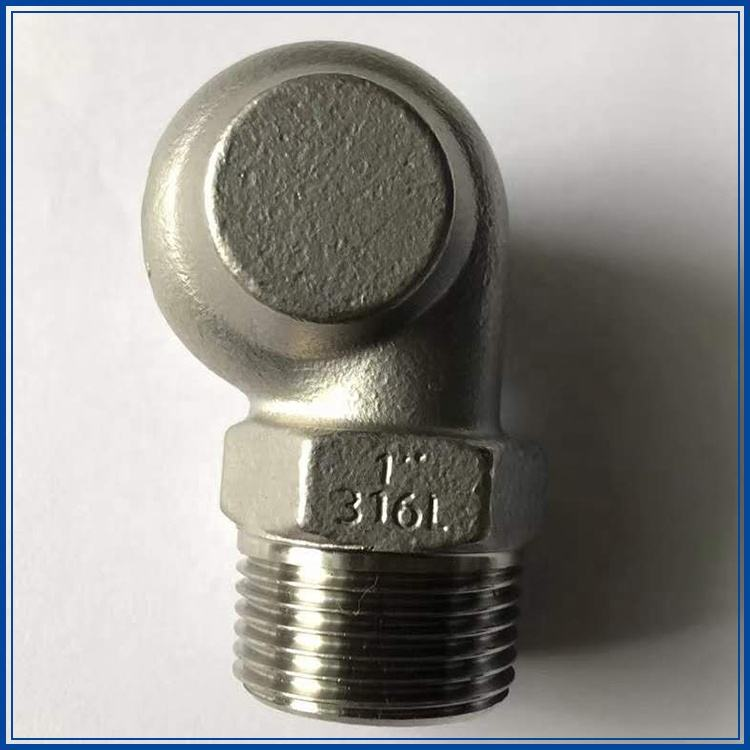

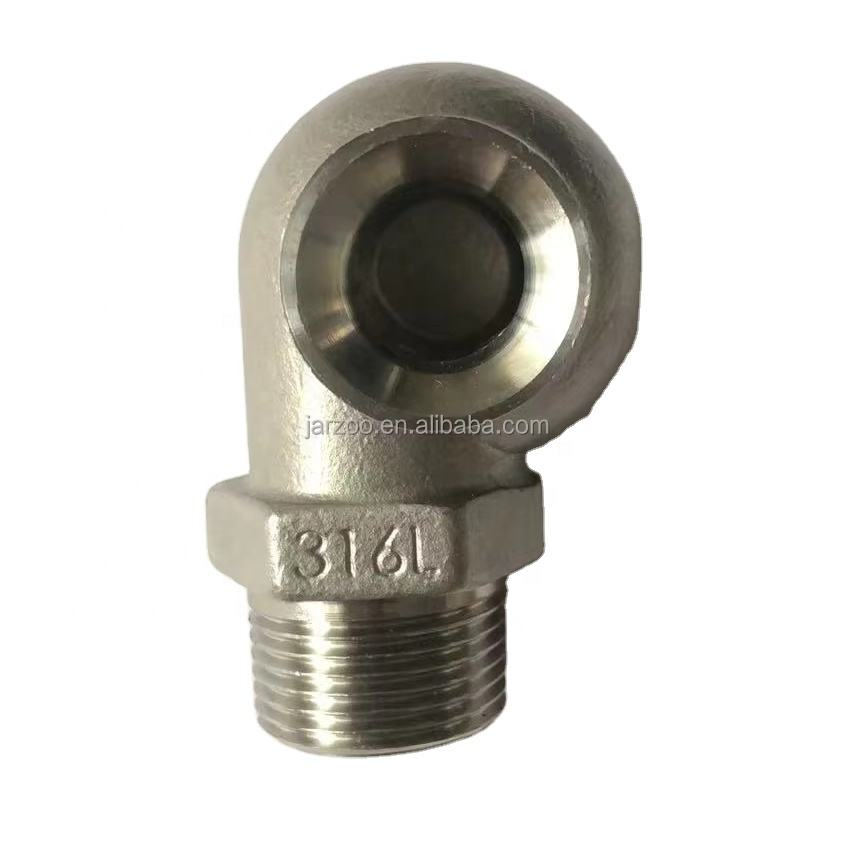

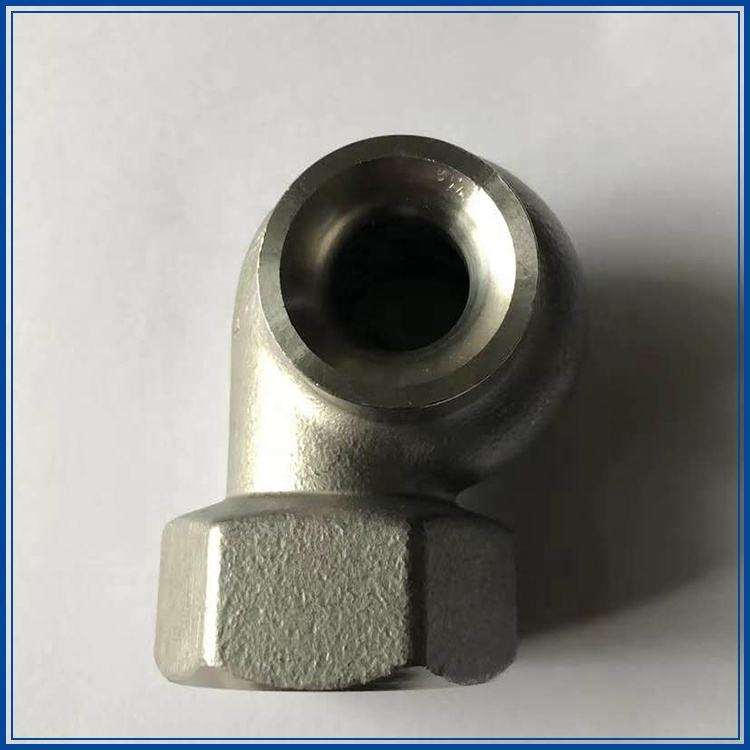

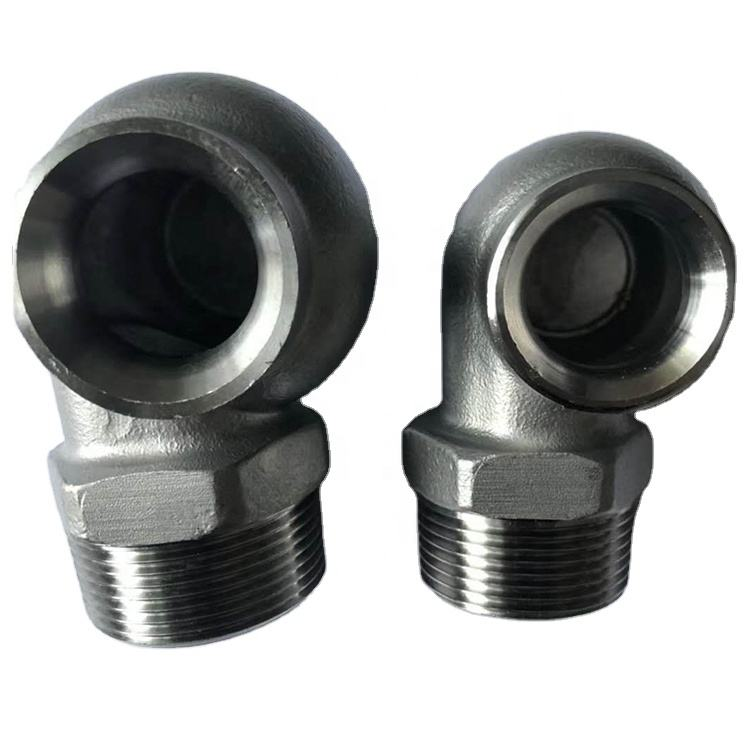

Stainless Steel Swirl Nozzle: High-Efficiency Atomization & Impact Control
1. Definition & Core Technology
A stainless steel swirl nozzle is a precision-engineered fluid control device that utilizes tangential inlet ports and rotational chambers to generate a vortex motion within the liquid or gas stream. This design converts pressure energy into centrifugal force, enabling:
Fine atomization (droplet size: 10–200 μm) for combustion, cooling, or coating applications.
High-impact spray patterns (e.g., hollow cone, full cone) for cleaning, surface treatment, or dust suppression.
Key Components:
Swirl Chamber: Induces rotational flow for uniform droplet distribution.
Orifice Plate: Laser-drilled orifice (Ø 0.1–5 mm) determines flow rate and spray angle.
Stainless Steel Body: Ensures durability under high pressure, temperature, and corrosive conditions.
2. Material Advantages: Why Stainless Steel?
Property Performance Benefit
Corrosion Resistance Withstands acidic, alkaline, or saline environments (e.g., chemical processing, marine applications).
Thermal Stability Operates continuously at temperatures up to 800°C (e.g., exhaust gas treatment, industrial furnaces).
Mechanical Strength Resists wear, erosion, and deformation from high-velocity fluids or abrasive particles (e.g., sandblasting, slurry spraying).
Hygienic Compliance Meets FDA/3A/EC 1935/2004 standards for food, pharmaceutical, or dairy applications (non-toxic, easy to clean).
3. Design Innovations for Enhanced Performance
A. Precision Swirl Geometry
Multi-Port Inlets: Tangential inlets (2–6 ports) optimize fluid rotation, reducing pressure drop by 15–30% vs. single-port designs.
Variable Orifice Shapes:
Cylindrical: Produces a full cone spray with uniform coverage (e.g., agricultural spraying).
Tapered: Generates a hollow cone pattern for high-impact cleaning (e.g., tank interior scrubbing).
B. Surface Treatments
Electropolishing: Smoothens internal surfaces (Ra < 0.2 μm) to minimize bacterial adhesion and clogging in sanitary systems.
Passivation Coating: Forms a chromium oxide layer for enhanced chemical resistance (e.g., H₂SO₄, NaCl exposure).
C. Modular Construction
Interchangeable Orifice Inserts: Allows quick adaptation to different flow rates or spray angles without replacing the entire nozzle.
Thread/Flange Compatibility: Fits standard piping systems (e.g., NPT, BSP, ANSI flanges) for easy integration.
4. Industry-Specific Applications
A. Combustion & Energy
Gas Turbine Fuel Nozzles:
316L stainless steel swirl tips achieve >99% fuel atomization efficiency, reducing NOx emissions by 40–60% in power generation.
Example: Siemens SGT-800 turbines use swirl nozzles for lean-burn combustion at 1,200°C.
Industrial Burners:
Dual-fluid swirl nozzles mix steam/air with fuel oil, creating a fine mist (SMD <50 μm) for stable flame propagation in boilers.
B. Environmental Control
Flue Gas Desulfurization (FGD):
Hollow cone swirl nozzles distribute limestone slurry uniformly across 10-meter-wide scrubber towers, achieving 95%+ SO₂ removal in coal-fired plants.
Dust Suppression:
Full cone nozzles generate 50–100 μm droplets to bind airborne particles in mining, construction, or recycling facilities.
C. Chemical & Process Industries
Acid Spraying:
Hastelloy® C-276-lined swirl nozzles resist HCl, H₂SO₄, and other aggressive chemicals in pickling lines or etching processes.
Pharmaceutical Coating:
Electropolished 304 stainless steel nozzles ensure GMP-compliant uniformity in tablet coating or granulation.
D. Agriculture & Food
Crop Spraying:
Anti-drip swirl nozzles reduce pesticide waste by 20–35% through precise droplet control (e.g., 80–120 μm for foliar uptake).
Dairy CIP (Clean-in-Place):
Full cone nozzles deliver 360° coverage for automated cleaning of milk tanks and pipelines.
5. Performance Metrics & Sustainability
Flow Efficiency: ±2% flow rate consistency over 10,000+ operating hours, reducing process variability.
Water Conservation: Fine atomization cuts liquid consumption by 15–30% vs. conventional nozzles (e.g., cooling tower drift reduction).
Lifecycle Cost: Stainless steel’s 5–10x longer lifespan vs. brass or plastic nozzles offsets initial investment.
6. Leading Product Examples
Supplier Product Series Key Innovation
Spraying Systems Co. MaxiPass® Swirl Nozzles Patented "VeeJet" orifice design for self-cleaning in abrasive slurry applications.
Lechler GmbH iNozzle® Dynamic Swirl AI-optimized swirl chambers adjust spray angle in real-time for smart factory integration.
BETE Fog Nozzle WhirlJet® Abrasive Tips Tungsten carbide inserts embedded in stainless steel bodies for high-pressure sandblasting.
7. Conclusion
Stainless steel swirl nozzles are critical for industries requiring precision, durability, and efficiency in fluid dispersion. Innovations in materials (e.g., superalloys) and digital design (e.g., CFD-optimized flow paths) continue to expand their applications, from aerospace propulsion to sustainable agriculture.
For custom solutions or technical support, contact [Your Company Name]—a global leader in stainless steel swirl nozzle technology.
Silica Sol Precision Casting Process
STEP 01
Wax Pattern Creation
Wax patterns are produced according to the customer’s CAD drawings or samples. This step determines the final dimensions, shape, and surface quality.
STEP 02
Shell Building with Silica Sol Slurry
The wax pattern is repeatedly dipped in a high-purity silica sol slurry and coated with refractory zircon sand, forming a strong ceramic shell.
STEP 03
Drying
Each layer is dried in a constant temperature and humidity environment to avoid cracks and ensure shell integrity.
STEP 04
Dewaxing & Shell Sintering
Wax is removed, and the ceramic shell is sintered at high temperature to achieve strength and dimensional stability.
STEP 05
Metal Pouring
Molten stainless steel 304, 316, carbon steel, alloy steel, or non-ferrous alloys are poured into the shell.
STEP 06
Shell Removal & Cleaning
The shell is broken away, and the raw casting is cleaned of any residual material.
STEP 07
Heat Treatment & Finishing
Heat treatments such as annealing, hardening, tempering, or surface hardening are applied to improve mechanical properties. Surface treatments like electropolishing or mirror polishing are available upon request.
