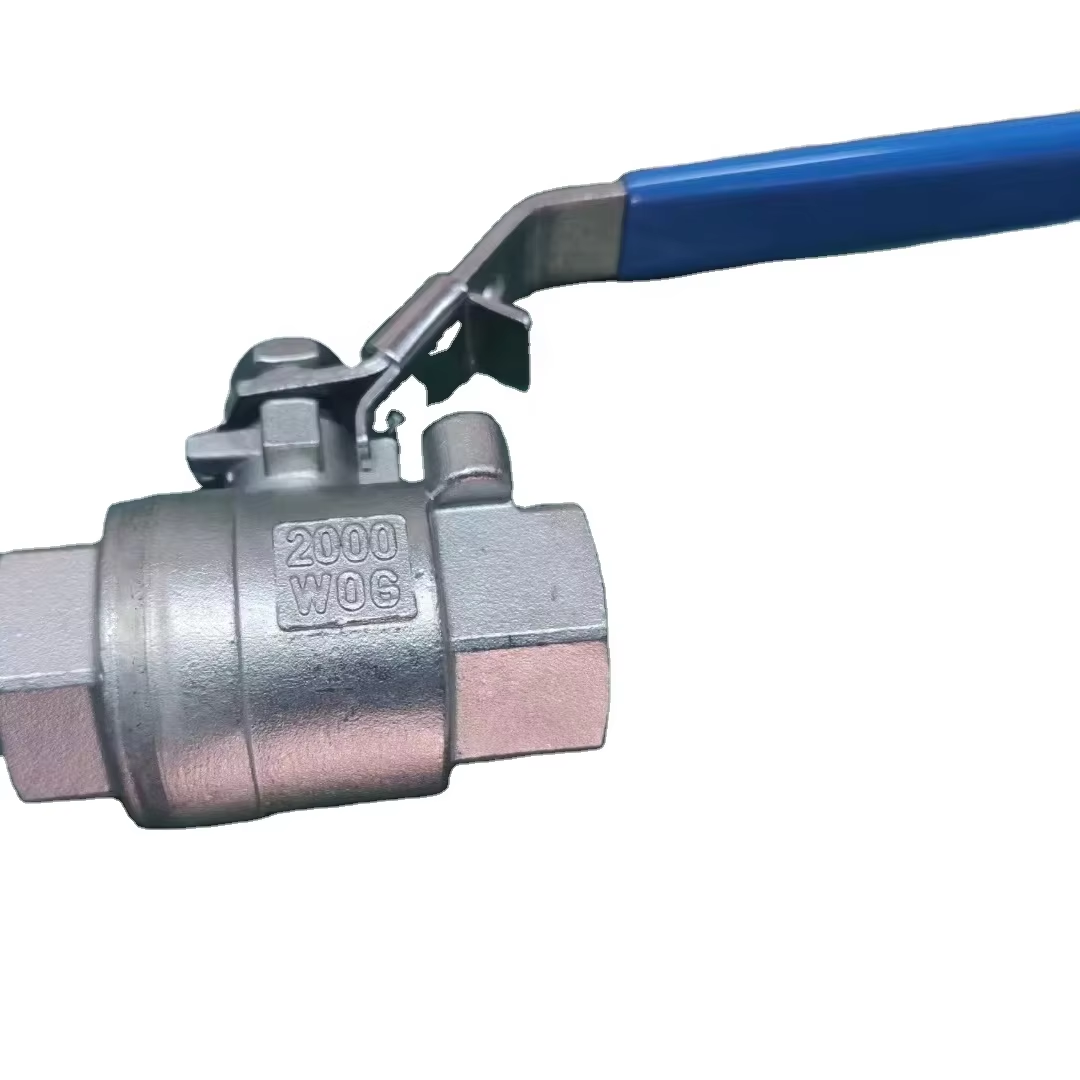

Name: Custom Good Quality Stainless Steel 304 316 2000WOG Stainless Steel 304 316 Ball Valve
Brand: jzcastings.com
Rating: 5 (1 reviews)

Description

Product Overview

Product Parameters

Item	Detail
Specification	Customized,customer required,customer's drawings
Material	stainless steel;304 CF8 1.4308 304L CF3 1.4308 316 CF8M 1.4408 316L CF3M 1.4404 1.4409 WCB 1.0619 Carbon Steel25#35#45#; Alloy Steel;Copper alloy etc.We test every furnace chemical component before pouring by spectrometer
Application	Automobile, agricultural machinery, furniture,construction, home appliances, electronics.etc.
Process	Silicon sol precision casting
Machining	CNC machining center, CNC lathe
Casting tolerance	IT4 - IT7
Machining tolerance	+/- 0.005mm,ISO2768-f
Standard	DIN,JIS,ASTM,GOST,ISO,BS
Heat treatment	Available
Weight range	0.01-150kg
casting machine specification	200T
Finish	Acid cleaning and passivation
Quality control	FEMA,PPAP,APQP,Control Plan,MSA,
Certificates for all requirements	Test reports for every delivery
Service	Please feel free to contact us if you have any questions after receiving the goods.questions will be answered within 24 hours
Surface treatment	Electrochemical polish.mirror polish. As customers' requirements

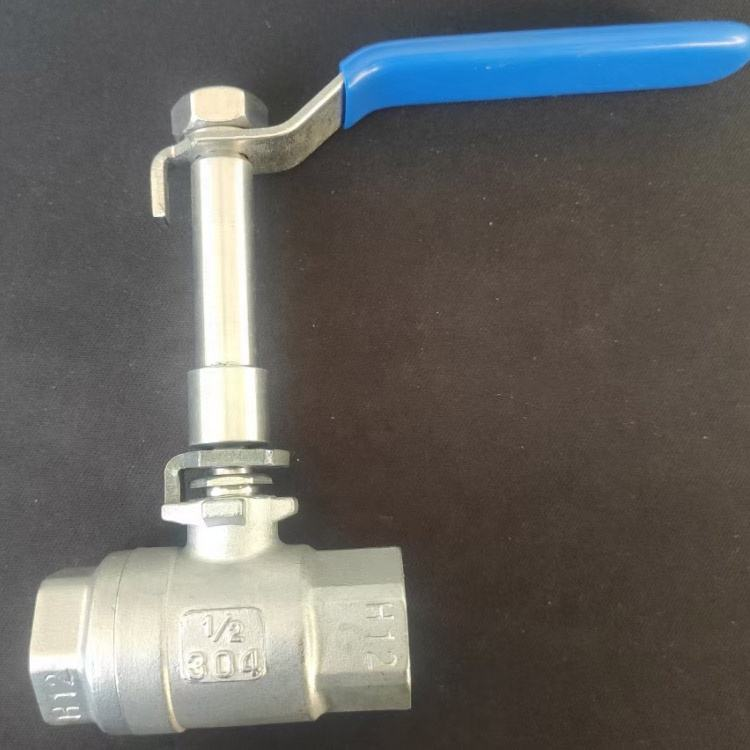

Two-Piece Construction: Comprises a valve body and a cover connected via bolts, enabling easy disassembly for maintenance without pipeline removal.

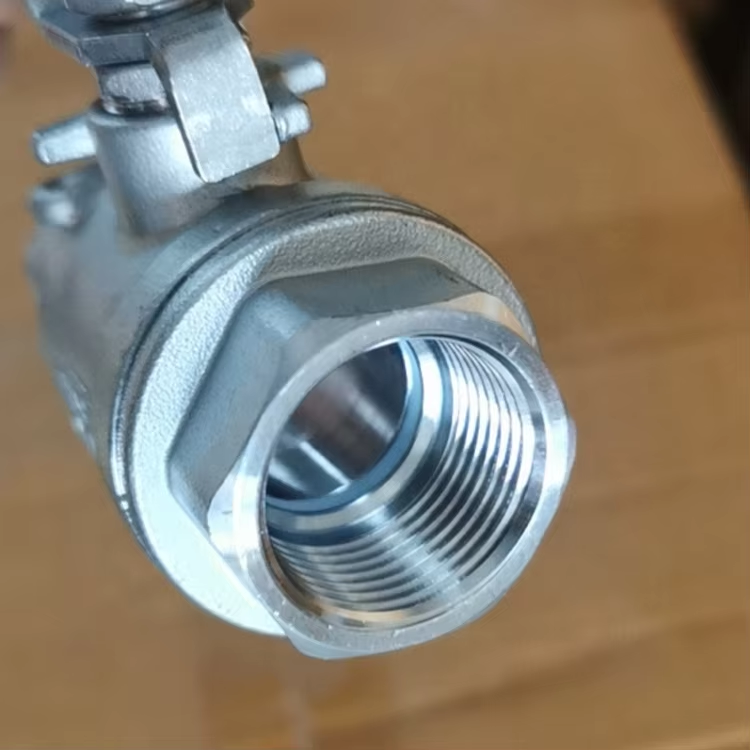

Dual-Internal-Threaded Connections: Both ends feature female threads (e.g., G1/2, G3/4, NPT, BSPT), allowing direct connection to male-threaded pipes or fittings. This design eliminates the need for flanges or welding, saving space and installation time.
Floating Ball Design: The ball rotates freely under medium pressure, ensuring tight sealing against the seat. A 90° turn of the handle or actuator achieves full open/close operation.

Corrosion Resistance:
- Made of 304/316/316L stainless steel, resistant to acids, alkalis, and chloride ions (e.g., seawater, chemical solutions).
- Suitable for sanitary applications (food, beverage, pharmaceuticals) due to electropolished surfaces meeting FDA/3A standards.
High Flow Efficiency:
- Full-port design minimizes pressure drop (Cv value 1.5× higher than gate valves of the same size).
- Bubble-tight shutoff (ISO 5208 Class A) prevents leakage under high pressure.
Durable Sealing:
- PTFE/RTFE seats withstand temperatures up to 200°C (392°F) and resist wear.
- Blowout-proof stem with dual O-rings ensures safety during operation.
Low Torque Operation:
- Quarter-turn (90°) design enables rapid opening/closing, ideal for emergency shutoff.
- Optional pneumatic/electric actuators support automation with 4-20mA or 0-10V signaling.

Parameter	Details
Material	304/316/316L stainless steel (ASTM A351 CF8M/CF3M), optional Hastelloy®
Size Range	DN15 (1/2") to DN100 (4")

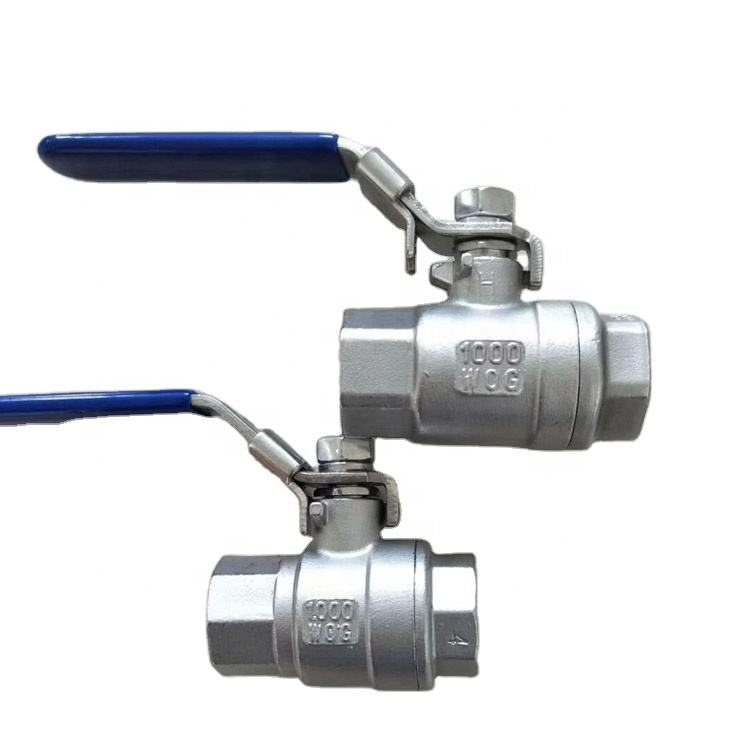

Pressure Rating	ANSI Class 150~300 (PN16~PN40), up to 1000 WOG (PN63)
Temperature	-20°C (-4°F) to 200°C (392°F) (PTFE seats); up to 350°C with special seals
Thread Types	BSPT, BSP, NPT, DIN259/2999
Actuation	Manual, pneumatic, electric (modulating/on-off)
Certifications	ISO 9001, PED 2014/68/EU, ATEX (for explosive atmospheres)

Chemical Processing: Handling acids, alkalis, and solvents.
Oil & Gas: Pipeline isolation, wellhead control, and refinery applications.
Food & Beverage: CIP/SIP systems requiring hygienic, corrosion-resistant valves.
Water Treatment: Desalination, wastewater, and industrial cooling systems.
HVAC: Building heating, ventilation, and air conditioning.

Orientation: Ensure sufficient space for handle rotation; avoid interference with pipes/equipment.
Actuation Limitations: Not recommended for throttling (high-velocity flow may erode seats).
Thread Compatibility: Verify thread standards (BSPT vs. NPT) to prevent leaks.
