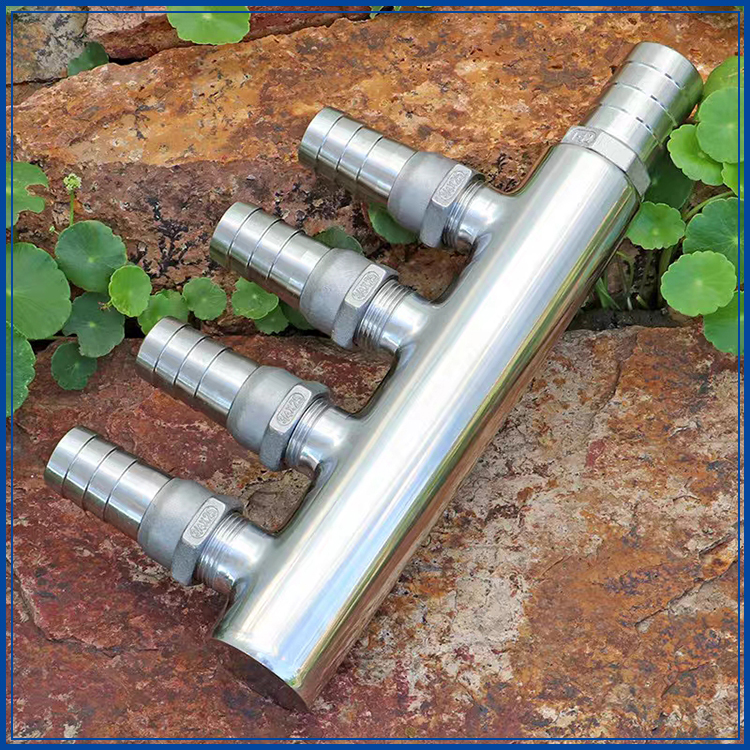

Custom High Pressure-Resistant Stainless Steel 304 316 Manifold

1. Definition and Core Function
A stainless steel water divider is an industrial fluid distribution device designed to split a single water (or fluid) inlet into multiple outlets, enabling precise control and balanced flow distribution in complex piping systems. It is widely used in scenarios requiring simultaneous supply to multiple endpoints, such as floor heating, HVAC systems, and industrial process piping.

2. Key Material and Structural Features

Material Composition: Primarily constructed from 304 or 316L austenitic stainless steel, known for its exceptional corrosion resistance, high strength, and durability. The material selection ensures long-term stability in environments with varying water qualities and temperatures.
Manufacturing Process: Utilizes advanced techniques including cold rolling for surface finish (Ra ≤ 0.8μm), argon arc welding for single-sided welding with double-sided forming, and acid washing/polishing for enhanced corrosion resistance. These processes guarantee a smooth inner surface, minimizing fluid resistance and preventing contamination.
Structural Design: Features a modular structure with multiple outlets (typically 2–12 ports) and customizable configurations (e.g., double-row square tooth design). It supports various connection methods, including double card pressure fittings, threaded connections, and flange joints, ensuring compatibility with diverse piping systems.

3. Technical Specifications and Performance

Pressure Rating: Withstands a maximum working pressure of ≤2.4 MPa and a seal test pressure of 1.6 MPa (leakage ≤1 mL/min), meeting stringent safety standards for high-pressure applications.
Corrosion Resistance: Passes a 96-hour neutral salt spray test without red rust formation, ensuring reliability in humid or saline environments.
Lifespan: Designed for a service life of at least 70 years, equivalent to the lifespan of modern buildings, with manual valves rated for 20,000 cycles and electric valves for 200,000 cycles without leakage.
Thermal Performance: Low thermal conductivity minimizes heat loss during hot water transmission, improving energy efficiency in heating systems.

4. Compliance with International Standards

Chinese Standards: Adheres to T/CECS 10271-2023 (design and manufacturing specifications), GA11-91 (performance requirements), and CJ/T151-2001 (material and hygiene standards).
Global Standards: Meets EN 10312 (European piping systems), ASTM A312 (American material specifications), and GB/T17219-1998 (health and safety requirements for drinking water systems).
Certifications: Products often carry ISO9001 (quality management), ISO14001 (environmental management), and WRAS (Water Regulations Advisory Scheme) certifications, ensuring compliance with international safety and environmental norms.

5. Diverse Applications

Residential Sector: Integral to floor heating systems, ensuring balanced heat distribution across rooms. Also used in direct drinking water systems for safe, hygienic water supply.
Commercial Buildings: Manages water flow in HVAC systems, maintaining stable pressure and temperature in large-scale facilities like hotels and hospitals.
Industrial Field: Facilitates fluid distribution in pharmaceutical manufacturing (e.g., purified water systems) and food processing (e.g., CIP cleaning circuits), where hygiene and corrosion resistance are critical.
Municipal Infrastructure: Applied in straight drinking water networks to control branch flow and ensure consistent water quality at endpoints.
Specialized Systems: Serves as a front-end (diversion) device in wet fire alarm valve groups, enhancing fire protection system reliability.

6. Advantages Over Traditional Alternatives

Corrosion Resistance: Unlike grey iron or carbon steel distributors, stainless steel models prevent rust and water discoloration, ensuring clean water supply.
Hygiene and Safety: Non-toxic, environmentally friendly material inhibits bacterial growth, making it ideal for drinking water and food-related applications.
Durability: High-strength construction withstands pressure fluctuations and thermal expansion, reducing maintenance needs and lifecycle costs.
Aesthetic Flexibility: Available in matte or glossy finishes with smooth inner/outer surfaces, blending seamlessly into modern architectural designs.


We offer CNC machining services for a wide variety of industrial-grade metals and engineering plastics:

Aluminum Alloys: 2000 series, 5052, 6061, 7075 — lightweight, corrosion-resistant, ideal for structural parts and enclosures.

Stainless Steels: SUS303, SUS304, SS316, SS316L, 17-4PH — perfect for high-strength and corrosion-resistant applications in medical and marine fields.

Carbon & Alloy Steels: 1214L, 1215, 1045, 4140, SCM440, 40CrMo — engineered for toughness and wear resistance.

Brass & Bronze Alloys: C260, C360, H59–H70, H62, H65, H68, H70, copper — excellent for precision fittings, electronics, and decorative elements.

Titanium: Grade F1 to F5 — known for its high strength-to-weight ratio, ideal for aerospace and biomedical components.
