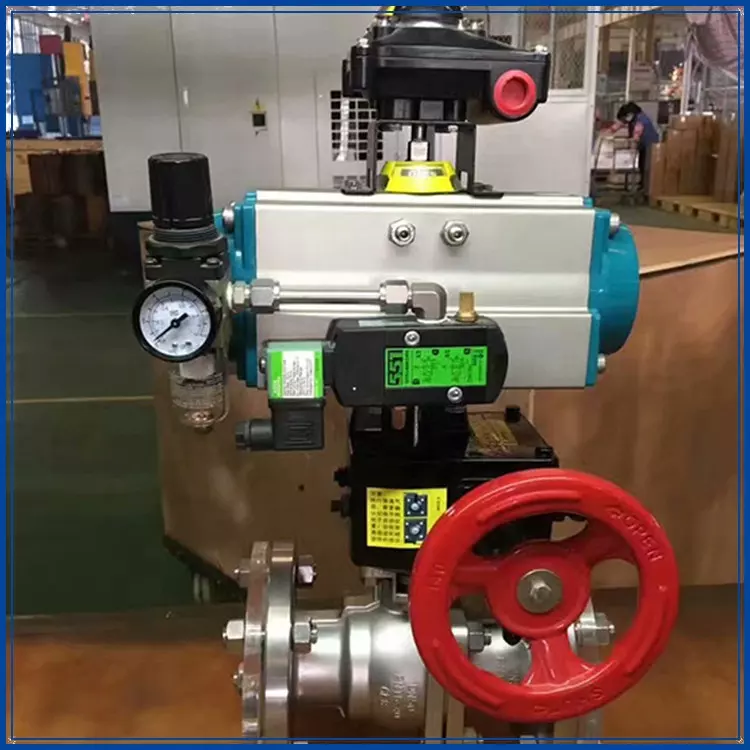

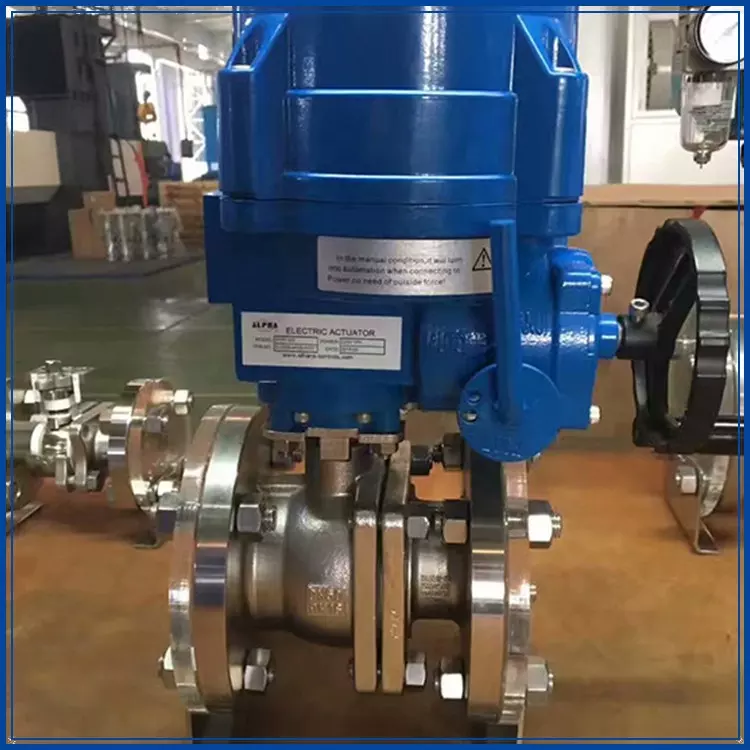

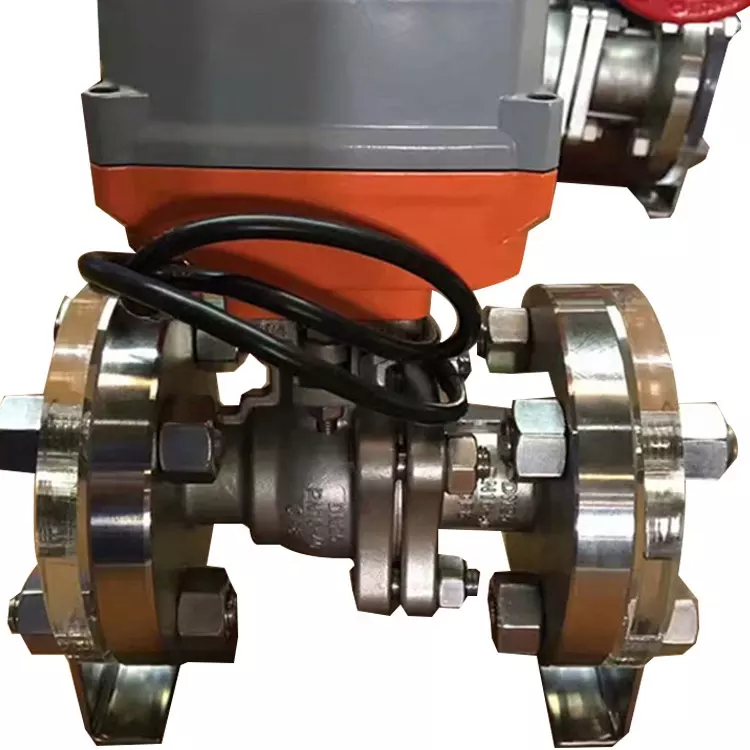

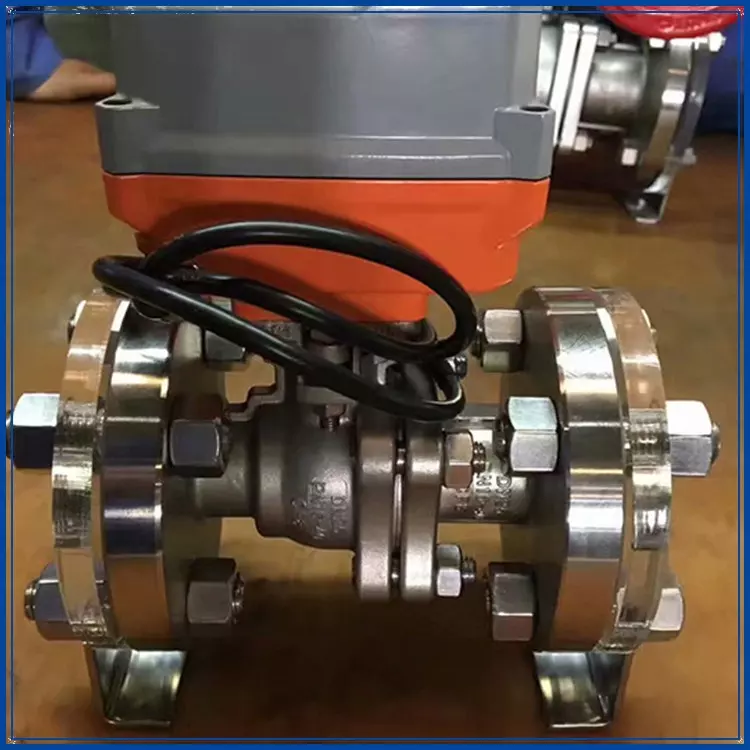

COVNA HK60-Q-3PS Stainless Steel 304 316 Motorized Actuated Pneumatic Control Ball Valve

Motorized Actuated Pneumatic Control Ball Valve

Key Components & Working Principle

1. Pneumatic Actuator
   • Type: Double-acting (air-to-open/air-to-close) or single-acting (spring-return).
   • Function: Converts compressed air pressure into mechanical motion to rotate the ball valve 90° for full open/close.
   • Advantage: Fast operation (0.05–0.5 sec), suitable for emergency shutdown (ESD) systems.
2. Motorized Control Module
   • Electric Positioner/Controller: Adjusts air supply to the pneumatic actuator based on 4–20 mA, 0–10 V, or digital signals (e.g., Modbus, PROFIBUS).
   • Feedback System: Integrates limit switches or position transmitters to monitor valve status (open/close/intermediate) and enable closed-loop control.
   • Actuation Modes:
     • On/Off Control: Full open/close via electric solenoid valves.
     • Modulating Control: Precise throttling (e.g., V-port ball valves for flow regulation).
3. Ball Valve Body
   • Materials: Stainless steel (304/316L), duplex steel, or nickel alloys (e.g., Hastelloy) for corrosion resistance.
   • Sealing: Soft seats (PTFE, PEEK) for general applications; metal seats for high-temperature/high-pressure services.
   • Designs: Full-port (zero pressure drop) or reduced-port (throttling) options.

Technical Features

1. Hybrid Performance
   • Speed: Pneumatic actuation ensures rapid response (<1 sec).
   • Precision: Motorized control achieves ±1% accuracy in modulating applications.
2. Safety & Reliability
   • Fail-Safe Options: Spring-return actuators close/open the valve during power or air failure.
   • Explosion-Proof (Ex d): Certified for hazardous environments (e.g., oil/gas, chemical plants).
3. Durability
   • High-Pressure Rating: Up to ANSI Class 2500 (42 MPa) and temperature ranges from -40°C to +250°C.
   • Anti-Clogging: Self-cleaning ball design minimizes particle buildup in slurry applications.
4. Smart Integration
   • Fieldbus Communication: Supports PROFINET, EtherCAT, or wireless protocols (e.g., LoRaWAN).
   • Predictive Maintenance: Built-in sensors track torque, cycles, and leakage for proactive service.

Applications

1. Oil & Gas
   • Pipeline Control: High-pressure ball valves for crude oil/natural gas transmission.
   • Wellhead Management: Pneumatic ESD valves with motorized logic controllers for safety shutdowns.
2. Chemical Processing
   • Reactor Feed Control: Precise dosing of corrosive chemicals via V-port ball valves.
   • Polymer Production: Hygienic designs (316L, Ra ≤ 0.4 μm) for sterile processes.
3. Power Generation
   • Steam Turbines: High-temperature ball valves (up to 600°C) for boiler feedwater regulation.
   • Nuclear Plants: Severe-service valves with metal seats and radiation-resistant actuators.
4. Water Treatment
   • Desalination: Super duplex stainless steel (2507) valves for seawater intake.
   • Wastewater: Ceramic-lined ball valves for abrasive sludge handling.

Advantages Over Traditional Valves

✅ Faster Response: Pneumatic actuation outperforms electric actuators in emergency scenarios.
✅ Lower Energy Cost: Compressed air operation consumes less power than electric motors for large valves.
✅ Higher Precision: Motorized control eliminates hysteresis common in pure pneumatic systems.
✅ Remote Diagnostics: Smart actuators enable real-time monitoring via SCADA/DCS platforms.

Selection Criteria

1. Actuation Type:
   • Choose double-acting for bidirectional control or single-acting for fail-safe operation.
2. Control Signal:
   • Analog (4–20 mA) for legacy systems; digital (EtherNet/IP) for Industry 4.0 integration.
3. Environmental Compliance:
   • ATEX/IECEx certification for explosive atmospheres; NACE MR0175 for H₂S service.
4. Maintenance Access:
   • Modular designs allow quick replacement of actuators without pipeline shutdown.

Conclusion

The motorized actuated pneumatic control ball valve is a high-performance automation solution that merges the speed of pneumatics with the intelligence of motorized control. Its versatility makes it ideal for mission-critical applications in energy, chemical, and water sectors, where safety, precision, and uptime are paramount.

For further customization (e.g., explosion-proof housing, cryogenic service), consult with valve manufacturers to match specific process requirements.
